| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applied Standard | |
| Color | |
| Current | |
| Flammability Rating | |
| Height | |
| Industrial Grade | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Maximum Load Current | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Cross Section | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category | |
| Packing Unit | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight per Piece | |
| Width | |
| Wire Gauge or Range |

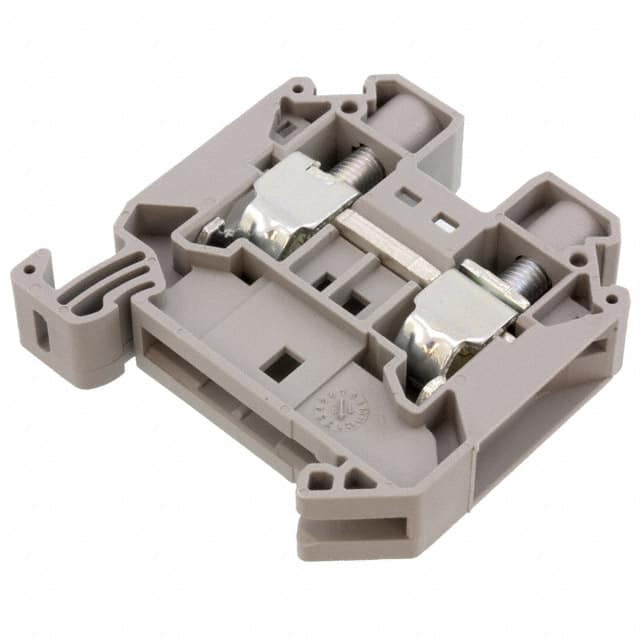

The Phoenix Contact 3044199 is a feed-through terminal block from the UT 16 series, designed for secure and reliable wire connections in industrial applications. It features a screw connection method and accommodates wire cross-sections from 1.5 mm² to 25 mm² (16-4 AWG), with a nominal cross-section of 16 mm². The terminal block is rated for a nominal voltage of 1000 V and a nominal current of 76 A, with a maximum load current of 101 A when using a 25 mm² conductor. It meets IEC 60947-7-1 standards and is tested for railway applications.
Key electrical specifications include a rated surge voltage of 8 kV, pollution degree 3, overvoltage category III, and insulating material group I. The insulating material is polyamide (PA) with a flammability rating of V0 per UL 94. The terminal block is gray and weighs 30 g. It mounts on NS 35/7.5 and NS 35/15 DIN rails, making it suitable for control cabinets and distribution panels. The packing unit is 1 piece, with a minimum order quantity of 50 pieces.
The design includes a shock protection test according to DIN EN 5027, and the open side panel allows for easy bridging. This terminal block is well-suited for mechanical engineering, plant engineering, and process industry applications where high current and voltage ratings are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.44 | $2.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
76 A, with a maximum load current of 101 A at 25 mm² conductor cross-section.
1000 V, with a rated surge voltage of 8 kV.
1.5 mm² to 25 mm² (16-4 AWG).
NS 35/7.5 and NS 35/15 DIN rails.
Screw connection.
V0 per UL 94.
