| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Method | |
| Current | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Current | |
| Rated Voltage | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| Wire Gauge or Range |

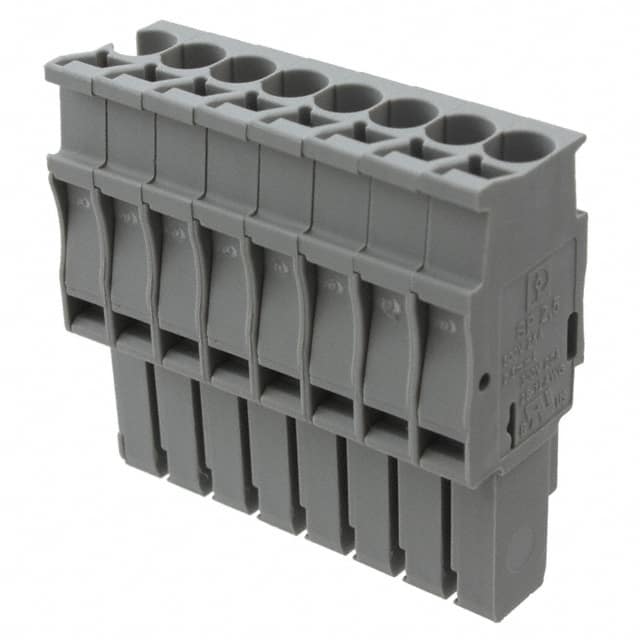

The Phoenix Contact 3040326 is a terminal block plug with 8 positions and female socket contacts. It features a spring-cage connection for tool-free wiring, making it suitable for quick and reliable terminations in industrial control systems.
Electrically, this plug is rated for 500V nominal voltage with a maximum load current of 24A when using 2.5 mm² conductors. It has a rated surge voltage of 6 kV and meets IEC 61984 standards. The insulating material group is I, with pollution degree 3 and surge voltage category III.
Mechanically, the plug accepts solid conductors from 0.08 mm² to 4 mm² and stranded conductors from 0.08 mm² to 2.5 mm² (28-12 AWG). The stripping length is 10 mm. Dimensions: width 41.6 mm, length 15.8 mm, height 39 mm. Color is gray. The plug is free hanging (in-line) mounting type.
The product is RoHS compliant since 2003 and packaged in quantities of 25 pieces. It is part of the SP 2,5/ 8 series and is designed for use in various industrial applications requiring secure wire connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.60 | $11.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
Maximum load current is 24 A with 2.5 mm² conductor cross section.
Rated voltage is 500 V (nominal).
Free hanging (in-line) mounting.
Solid conductors 0.08-4 mm² (28-12 AWG), stranded 0.08-2.5 mm².
Screwless spring cage, tension clamp.
