| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
901 pcs
|
901 pcs | On Request | 1 | On Request | On Request | 98 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

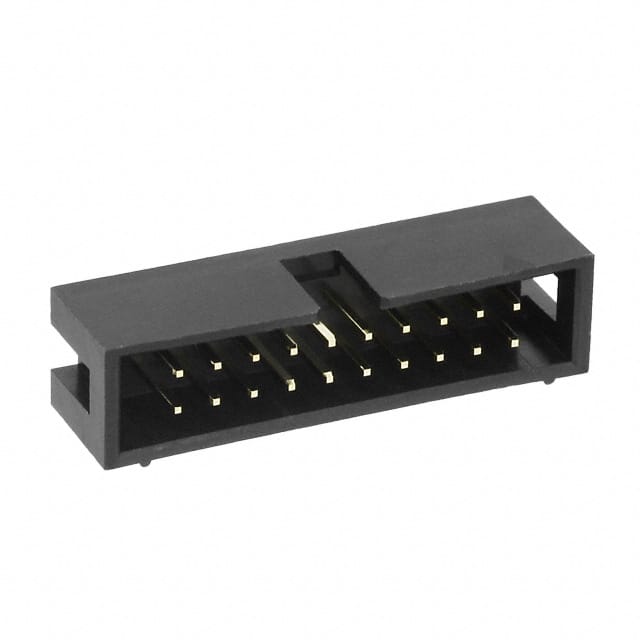

The 3M 30320-6002HB is a 20-position, 2-row shrouded header designed for board-to-board or cable connections. It uses a 2.54mm (0.100") pitch and row spacing, making it compatible with standard prototyping and production layouts. The header features a 4-wall shrouded housing with a keying slot for polarization, and a push-pull fastening mechanism.
The contacts are made of brass with a gold flash finish, rated for 1A current. The insulation is black polybutylene terephthalate (PBT) with glass filling, rated UL94 V-0 for flammability. The operating temperature range is -55°C to 105°C.
This component is through-hole mounted and terminated by soldering. All 20 positions are loaded. The header is suitable for a variety of applications including industrial control, computing, and peripheral devices where reliable signal and power connections are required.
20 positions.
2.54mm (0.100 inches).
1A.
Through hole.
-55°C to 105°C.
Gold flash.
Listed as RoHS3 compliant, but unverified.
