| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| ConductorCrossSection (Minimum/Maximum @ Solid) | |
| ConductorCrossSection (Minimum/Maximum @ Stranded) | |
| Connection Type | |
| Flammability Class | |
| Height (Nominal @ NS 35/15) | |
| Height (Nominal @ NS 35/7.5) | |
| Insulating Material | |
| Insulating Material Group | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Package Quantity | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Standard Package Quantity | |
| Stripping Length | |
| Surge Voltage Category | |
| Tape & Reel | |
| Terminal | |
| Termination Style | |
| Type | |
| WEEE | |
| Width | |
| Wire Gauge or Range | |
| WireGauge (Minimum/Maximum) |

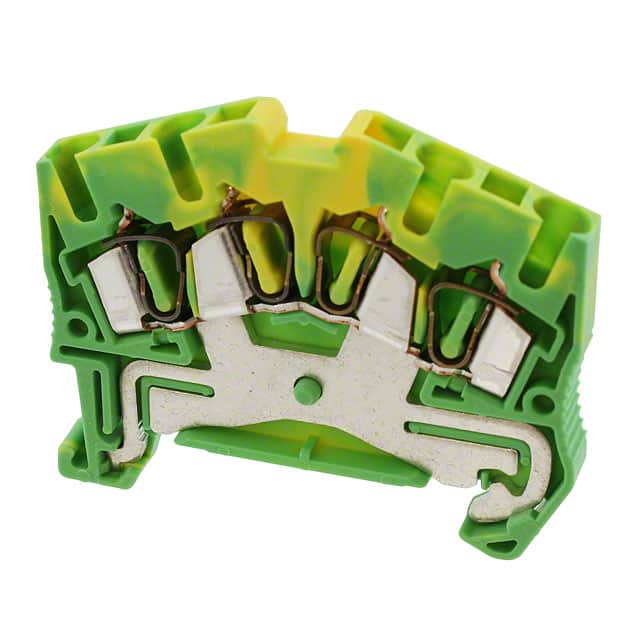

The Phoenix Contact 3031759 (STS 2,5-QUATTRO-PE) is a feed-through modular terminal block designed for ground/earth applications. It features 4 positions with spring-cage (push-in) connection, allowing tool-free wiring of solid and stranded conductors. The terminal block accepts conductor cross-sections from 0.08 mm² to 4 mm² (solid) and 0.08 mm² to 2.5 mm² (stranded), corresponding to 12-28 AWG. It has a width of 5.2 mm, length of 51 mm, and heights of 43 mm (NS 35/7.5 rail) or 50.5 mm (NS 35/15 rail).
The insulating material is polyamide (PA) with a flammability class of V0 per UL 94. The block is rated for a surge voltage of 8 kV, pollution degree 3, and surge voltage category III, with insulating material group I. It is designed in accordance with IEC 60947-7-2. The color is green-yellow for ground identification.
Mounting is on DIN rails NS 35/7.5 or NS 35/15. The product is WEEE/RoHS compliant since 2003. Standard packaging contains 50 pieces per pack. This terminal block is suitable for industrial control panels, machine building, and switchgear where reliable earth connections are required.
4 positions.
NS 35/7.5 and NS 35/15 DIN rails.
12-28 AWG (0.08-4 mm² solid, 0.08-2.5 mm² stranded).
Spring-cage connection (push-in spring).
Green-yellow.
1 level.
8 kV.
