Mfr Part #:

30316-6002HB

Name: 30316-6002HB
Brand: 3M
SKU: 30316-6002HB

Mfr Name: 3M

Description:

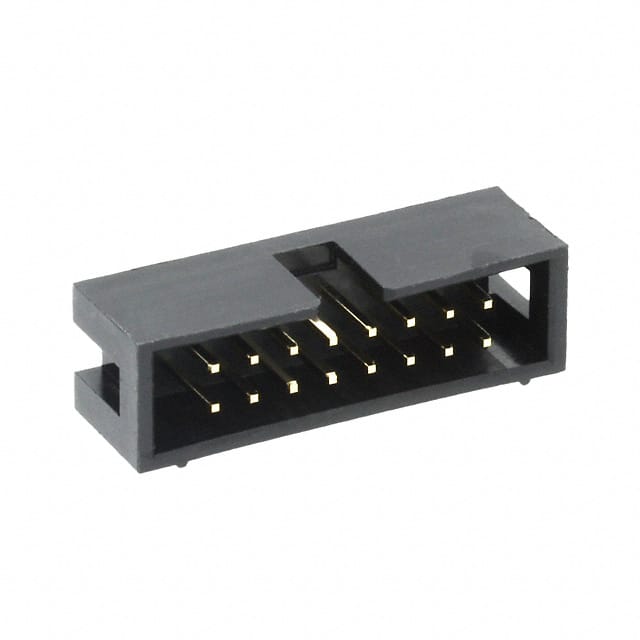

CONN HEADER VERT 16POS 2.54MM

Stock on Request

30316-6002HB Description

Short technical summary and product information.

CONN HEADER VERT 16POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	3M
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	0.236" (6.00mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.366" (9.30mm)
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
