| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Color | |
| Connection Method | |
| Flammability Class (UL 94) | |
| Height (@ Mounting on NS 35/15 rail) | |
| Height (@ Mounting on NS 35/7.5 rail) | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Solid Conductor Cross Section (Minimum/Maximum) | |
| Standard Package Quantity | |
| Stranded Conductor Cross Section (Minimum/Maximum) | |
| Stripping Length | |
| Tape & Reel | |
| Terminal | |
| Termination Style | |
| Type | |
| Width | |
| Wire Gauge or Range |

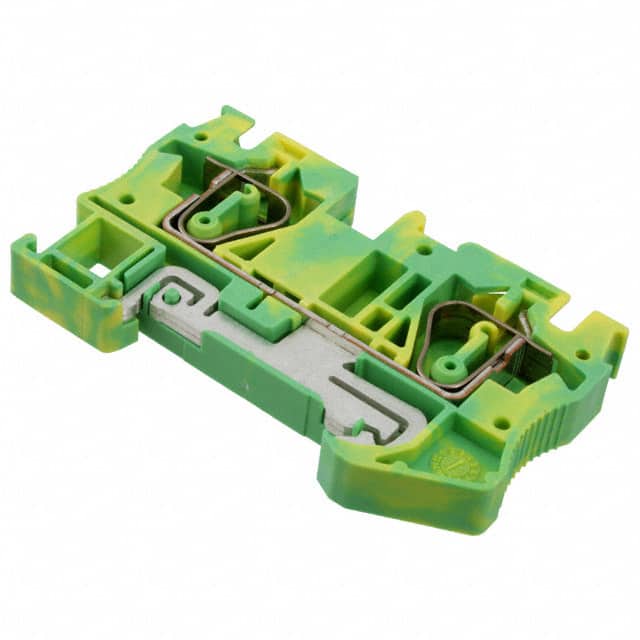

The Phoenix Contact ST 6-PE (order no. 3031500) is a ground modular terminal block designed for DIN rail mounting on NS 35/7.5 or NS 35/15 rails. It features a spring-cage connection method and accepts solid conductors from 0.2 mm² to 10 mm² and stranded conductors from 0.2 mm² to 6 mm², corresponding to an AWG range of 24-8. The stripping length is 12 mm.
The terminal block is rated for a surge voltage of 8 kV with pollution degree 3 and overvoltage category III. Its insulating material group is I, and the housing is made of PA (polyamide) with a V0 flammability class per UL 94. The product is green-yellow in color, indicating its ground/earth function.
Dimensions include a width of 8.2 mm, length of 69.5 mm, and heights of 43.5 mm on NS 35/7.5 rail and 51 mm on NS 35/15 rail. The standard package quantity is 50 pieces. The product is RoHS-compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.40 | $7.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions.
It accepts 24 to 8 AWG conductors.
Spring-cage (push-in) connection.
Yes, RoHS-compliant since 01/01/2003.
8 kV.
