| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Stranded with Ferrule, with plastic sleeve) (Minimum/Maximum) | |
| Conductor Cross Section (Stranded with Ferrule, without plastic sleeve) (Minimum/Maximum) | |
| Conductor Cross Section (Stranded) (Minimum/Maximum) | |
| Conductor Cross Section (TWIN Ferrules) (Minimum/Maximum) | |
| Conductor Cross Section Solid (Minimum/Maximum) | |
| Current | |
| Current Rating (DB) | |
| Flammability Rating | |
| Height (@ NS 35/15 DIN rail) | |
| Height (@ NS 35/7.5 DIN rail) | |
| Insulating Material Group | |
| Insulation Material | |
| Internal Cylindrical Gage | |
| Lead Style | |
| Length | |
| Maximum Current | |
| Mounting Type | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Open Side Panel | |
| Pollution Degree | |
| Standard Package Quantity | |
| Standards Compliance | |
| Stripping Length | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating (DB) | |
| Width | |
| Wire Gauge (AWG) (Minimum/Maximum) | |
| Wire Gauge or Range |

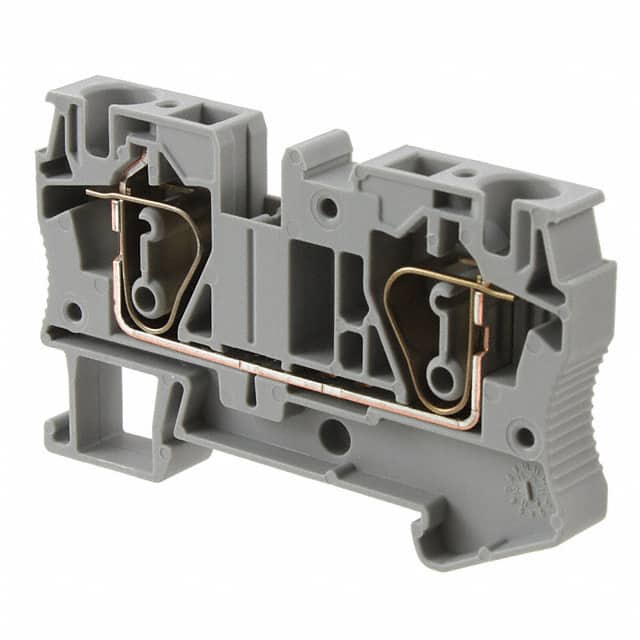

The Phoenix Contact 3031487 is a feed-through modular terminal block designed for DIN rail mounting (NS 35/7.5 or NS 35/15). It utilizes a spring-cage (push-in) connection for fast and reliable wiring. The terminal block has 2 positions and 1 level, supporting solid wire cross sections from 0.2 mm² to 10 mm² and stranded wire from 0.2 mm² to 6 mm². AWG range is 24 to 8. The nominal current rating is 41 A with a maximum load current of 52 A when using 10 mm² conductor. Nominal voltage is 1000 V with a rated surge voltage of 8 kV. The insulation material is polyamide (PA) with a flammability rating of UL94 V0. Dimensions: width 8.2 mm, length 69.5 mm, height 43.5 mm on NS 35/7.5 rail and 51 mm on NS 35/15 rail. The terminal block is RoHS compliant and meets IEC 60947-7-1 standards. It is supplied in packs of 50 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.67 | $3.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
Nominal current is 41 A, maximum load current is 52 A with 10 mm² conductor.
Nominal voltage is 1000 V with a rated surge voltage of 8 kV.
DIN rail mounting on NS 35/7.5 or NS 35/15.
Accepts 24 AWG to 8 AWG (0.2 mm² to 10 mm² solid).
Spring-cage connection (push-in).
Polyamide (PA) with UL94 V0 flammability rating.
