| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Standard | |
| Flammability Rating | |
| Height (Nominal @ NS 35/15) | |
| Height (Nominal @ NS 35/7.5) | |
| Industrial Grade | |
| Insulating Material | |
| Insulating Material Group | |
| Internal Cylindrical Gage | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Open Side Panel | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Standard Package Quantity | |
| Stripping Length | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Type | |
| Wire Gauge (AWG) | |
| Wire Gauge - Solid | |
| Wire Gauge - Stranded | |
| Wire Gauge or Range |

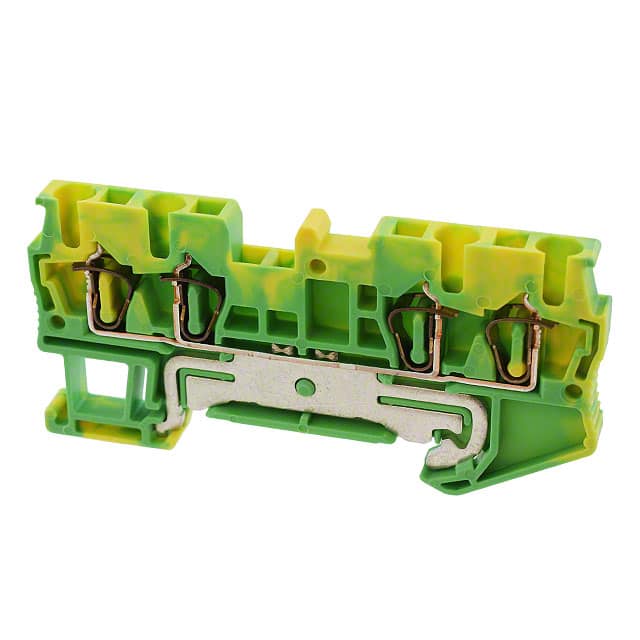

The Phoenix Contact 3031322 (ST 2,5-QUATTRO-PE) is a ground modular terminal block designed for protective earth connections in industrial control systems. It features a spring-cage connection that accepts solid conductors from 0.08 mm² to 4 mm² (28 AWG to 12 AWG) and stranded conductors up to 2.5 mm². With 4 connection points and a single level, this terminal block provides a compact grounding solution.
The terminal block is rated for a surge voltage of 8 kV (pollution degree 3, overvoltage category III) and complies with IEC 60947-7-2. The insulating material is polyamide (PA) with a flammability rating of UL 94 V-0. The green-yellow color indicates its grounding function.
Mounting is on DIN rails NS 35/7.5 or NS 35/15, with a width of 5.2 mm, length of 72 mm, and height varying by rail type (36.5 mm on NS 35/7.5, 44 mm on NS 35/15). The stripping length is 10 mm. The open side panel allows for bridging or grouping. Standard packaging is 50 pieces per pack.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.66 | $8.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
DIN Rail (NS 35/7.5 and NS 35/15).
8 kV.
28 AWG to 12 AWG (0.08 mm² to 4 mm² solid).
IEC 60947-7-2.
