Mfr Part #:

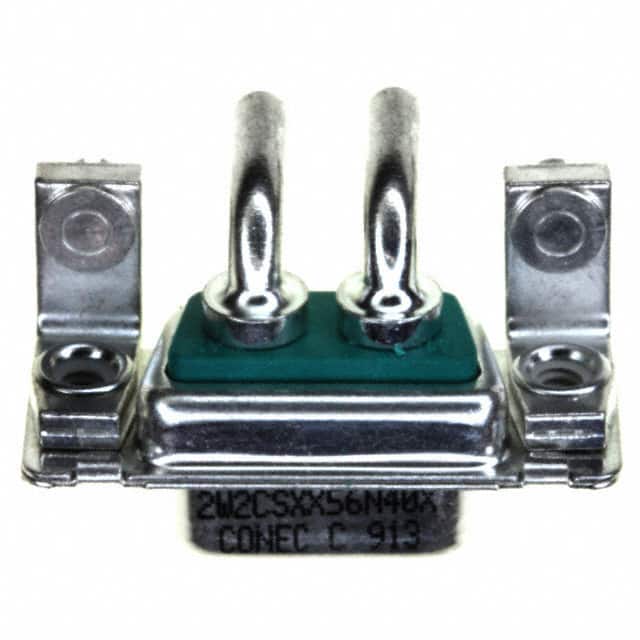

302W2CSXX56N40X

Name: 302W2CSXX56N40X
Brand: Conec
SKU: 302W2CSXX56N40X

Mfr Name: Conec

Description:

CONN D-SUB RCPT/PLUG 2P R/A SLDR

Stock on Request

302W2CSXX56N40X Description

Short technical summary and product information.

CONN D-SUB RCPT/PLUG 2P R/A SLDR

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	D-Sub Connector Assemblies
Manufacturer Name	Conec
Backset Spacing	0.459" (11.65mm)
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets and Male Pins
Contact Finish	Gold
Contact Finish Thickness	30.0碌in (0.76碌m)
Contact Type	Power
Current Rating (Amps)	20A
Features	Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Board Edge, Through Hole, Right Angle
Number of Positions	2 (Power)
Number of Rows	1
Shell Material, Finish	Steel, Tin Plated
Shell Size, Connector Layout	1 (DE, E) - 2V2, 2W2C
Termination	Solder
