| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Conductor Cross Section (Solid) (Minimum/Maximum @ Solid) | |
| Conductor Cross Section (Stranded) (Minimum/Maximum @ Stranded) | |
| Current | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Number of Levels | |
| Number of Positions | |
| Tape & Reel | |
| Terminal | |
| Termination Style | |
| Tightening Torque (Minimum/Maximum) | |
| Type | |
| Voltage | |
| WEEE | |
| Wire Gauge or Range |

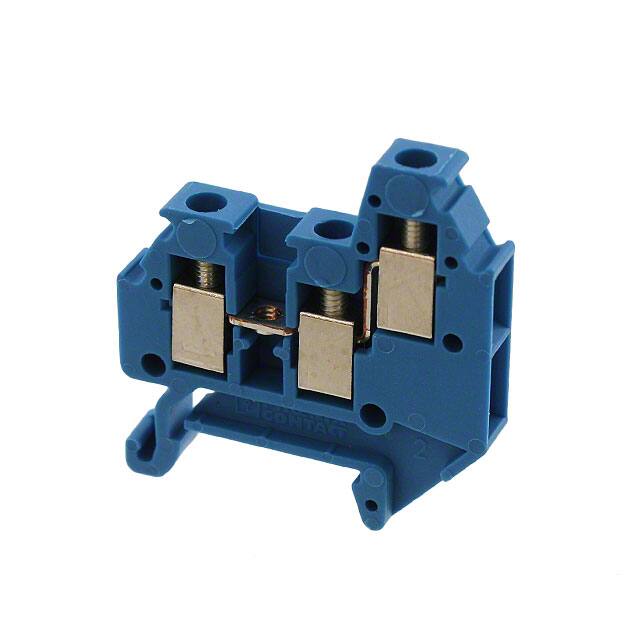

The Phoenix Contact 3025532 (MT 1,5-TWIN BU) is a feed-through modular terminal block designed for industrial wiring applications. It features 3 connections across 2 levels, screw termination, and accepts solid or stranded conductors from 0.14 to 1.5 mm² (26-16 AWG). The terminal block is rated for a nominal voltage of 400 V and a nominal current of 17.5 A (per IEC 60947-7-1), with a rated surge voltage of 4 kV, pollution degree 3, and overvoltage category III.
Mechanical specifications include a width of 4.2 mm, length of 28 mm, stripping length of 6 mm, M2 screw thread, and tightening torque range of 0.22-0.25 Nm. The insulating material is polyamide (PA) with flammability class V0 according to UL 94. The block is colored blue and mounts on NS 15 DIN rail. Packaged in quantities of 50 pieces.
This terminal block is suitable for use in control cabinets, automation systems, and power distribution panels where reliable feed-through connections are required. It is RoHS and WEEE compliant since 2003.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.70 | $4.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
17.5 A.
400 V nominal with 4 kV surge rating.
NS 15 DIN rail.
26-16 AWG (0.14-1.5 mm² solid or stranded).
Blue.
0.22 to 0.25 Nm.
