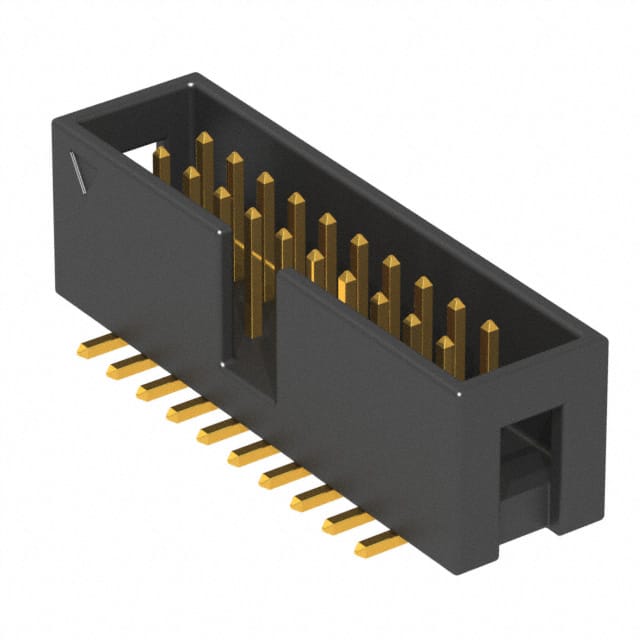

3020-20-0300-00 20-position, 2-row shrouded header with 2.54mm pitch, surface mount. Features gold-plated male pins and insulation height of 9.00mm.
Mfr Part #:

3020-20-0300-00

Available from 1 distributors
Mfr Name: CNC Tech
CNC Tech
20-position, 2-row shrouded header with 2.54mm pitch, surface mount. Features gold-plated male pins and insulation height of 9.00mm.
✓ Total Stock: 97 pcs
$ Price Range: $0.54 - $1.03

3020-20-0300-00 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
97 pcs
On Request
97 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3020-20-0300-00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

3020-20-0300-00 Description

Short technical summary and product information.

The CNC Tech 3020-20-0300-00 is a 20-position, 2-row shrouded header designed for board-to-cable/wire interconnections. It features a 2.54mm (0.100") pitch, surface mount termination, and gold flash contact finish on brass pins. The insulation material is polyamide (PA6T/PA9T) with a height of 9.00mm and a UL94 V-0 flammability rating. The 4-wall shrouding includes a keying slot for polarization and push-pull fastening. Rated for 3A (AC/DC) with an operating temperature range of -40°C to 105°C, this connector is suitable for industrial and general-purpose applications requiring reliable signal or power transmission. The square contact pins ensure secure mating, and the surface mount format supports automated PCB assembly.

3020-20-0300-00 Quick Information

Product Type: Header, Male Pins
Canonical Name: CNC Tech 3020-20-0300-00 20-Pin Shrouded Header, Surface Mount
Subcategory: Shrouded Header

3020-20-0300-00 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Non-JEDEC
REACH Status: REACH Unaffected

3020-20-0300-00 Estimated Pricing

Qty Low High
1+ $1.03 $1.03
10+ $0.88 $0.88
100+ $0.74 $0.74
960+ $0.63 $0.63
1,920+ $0.60 $0.60
5,760+ $0.56 $0.56
10,560+ $0.54 $0.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

3020-20-0300-00 Features

  • 20-position, 2-row shrouded header design.
  • 2.54mm pitch standard for IDC connectors.
  • Surface mount with gold-plated brass contacts.
  • Rated for 3A AC/DC operation.
  • Operating temperature range -40°C to 105°C.

3020-20-0300-00 Applications

  • Board-to-cable/wire interconnection applications.
  • Used in industrial control systems and automation.
  • Suitable for data communication and signal routing.

3020-20-0300-00 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

20 positions arranged in 2 rows.

What is the pitch of this connector?

2.54mm (0.100").

What is the current rating?

3A (AC/DC).

What is the mounting type?

Surface mount.

What is the operating temperature range?

-40°C to 105°C.

Is the header shrouded?

Yes, it is a 4-wall shrouded header with a keying slot.

What is the contact finish?

Gold flash over brass contacts.
