Mfr Part #:

3020-20-0200-00

Name: 3020-20-0200-00
Brand: CNC Tech
SKU: 3020-20-0200-00

Mfr Name: CNC Tech

Description:

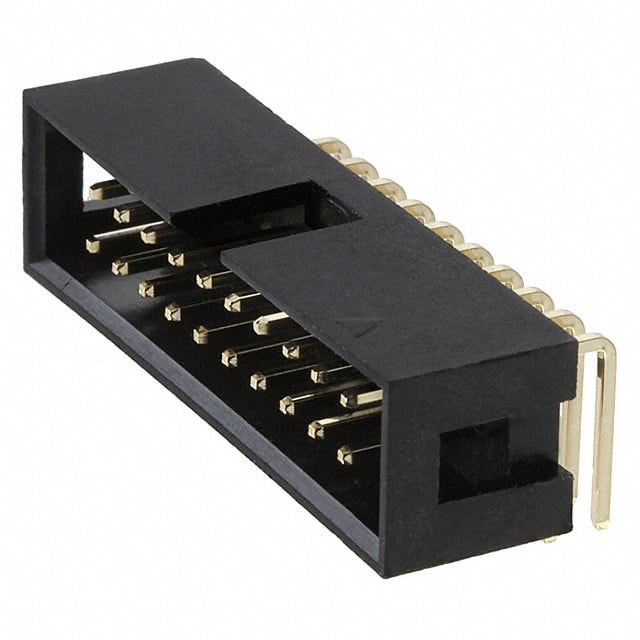

CONN HEADER R/A 20POS 2.54MM

Stock on Request

3020-20-0200-00 Description

Short technical summary and product information.

CONN HEADER R/A 20POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	CNC Tech
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	0.118" (3.00mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Insulation Height	0.346" (8.80mm)
Insulation Material	Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250VAC/DC
