| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

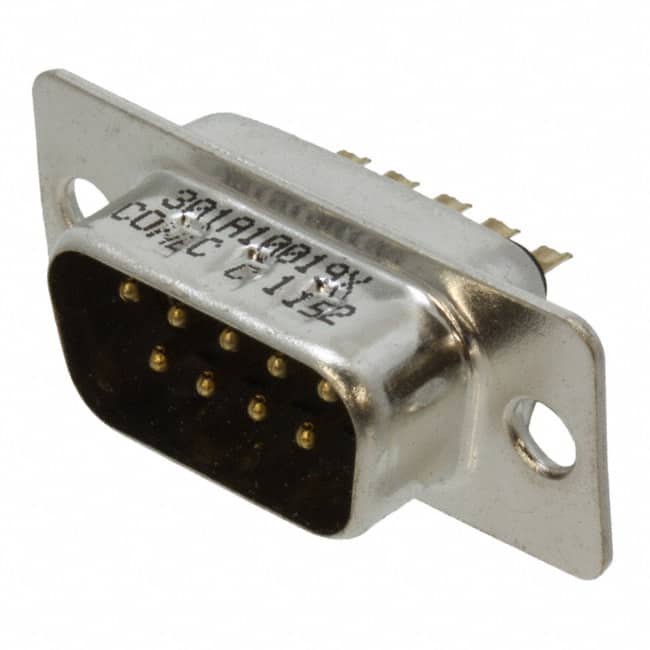

The Conec 301A10019X is a D-Sub connector plug with 9 male pins arranged in 2 rows. It features a solder cup termination style, making it suitable for cable assembly applications where wires are soldered directly to the contacts.
The connector is designed for free hanging (in-line) mounting, offering flexibility in cable-to-cable or cable-to-panel connections. The shell is made of steel with tin plating, providing durability and EMI shielding. The contacts are gold flash plated, ensuring reliable signal transmission and corrosion resistance.
The connector includes grounding indents for enhanced grounding performance. It is rated for 3A current per contact. The insulator material has a UL94 V-0 flammability rating, indicating good flame retardance.
This connector is commonly used in industrial, telecommunications, and data communication equipment where a standard 9-pin D-Sub interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
| 10+ | $1.17 | $1.17 |
| 50+ | $1.08 | $1.08 |
| 100+ | $1.03 | $1.03 |
| 250+ | $0.97 | $0.97 |
| 500+ | $0.93 | $0.93 |
| 2,500+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 positions arranged in 2 rows.
3 amps per contact.
Free hanging (in-line) mounting.
Solder cup termination.
Steel with tin plating.
Gold flash plating.
UL94 V-0.
