| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Total Length Recovered | |
| Type |

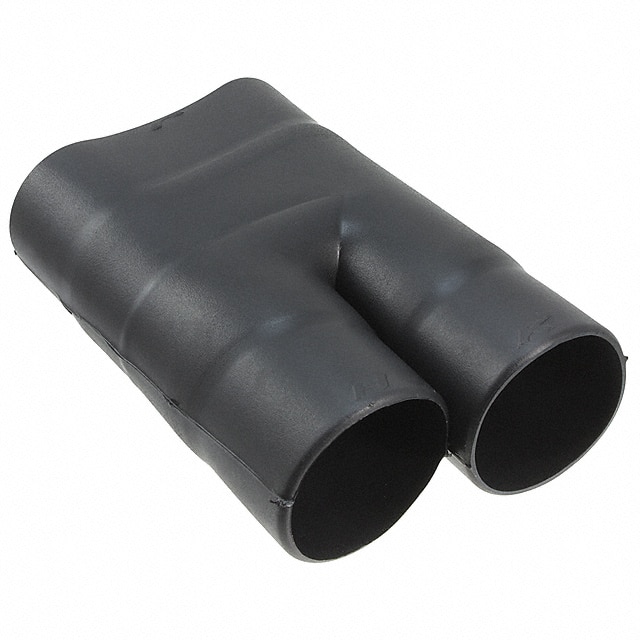

The 301A034-25-0 is a heat shrink transition-breakout boot from TE Connectivity. It features a 2:1 (T) configuration and shell size 34. The boot is constructed from semi-rigid irradiated elastomer in black color. It offers multiple protective properties including abrasion resistance, chemical resistance, flame retardance, fluid resistance, heat resistance, and strain resistance. The large diameter supplied is 1.060" (26.92mm) and recovers to 0.531" (13.49mm). The small diameter supplied is also 1.060" (26.92mm) recovering to 0.531" (13.49mm). The large recovered length is 2.370" (60.20mm) and small recovered length is 2.362" (59.99mm), with a total recovered length of 4.728" (120.09mm). This boot is designed for cable transition and breakout applications, providing environmental sealing and strain relief. It is RoHS3 compliant and has MSL 1 unlimited. The part is suitable for use in demanding environments requiring robust protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $74.33 | $74.33 |
| 10+ | $64.53 | $64.53 |
| 25+ | $61.50 | $61.50 |
| 50+ | $60.57 | $60.57 |
| 100+ | $59.08 | $59.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RoHS3 Compliant (unverified).
Semi-rigid irradiated elastomer.
Large and small supplied diameters are 1.060" (26.92mm), recovering to 0.531" (13.49mm).
4.728" (120.09mm).
Abrasion resistant, chemical resistant, flame retardant, fluid resistant, heat resistant, strain resistant.
34.
MSL 1 Unlimited (unverified).
