Mfr Part #:

30190

Mfr Name: Vicor

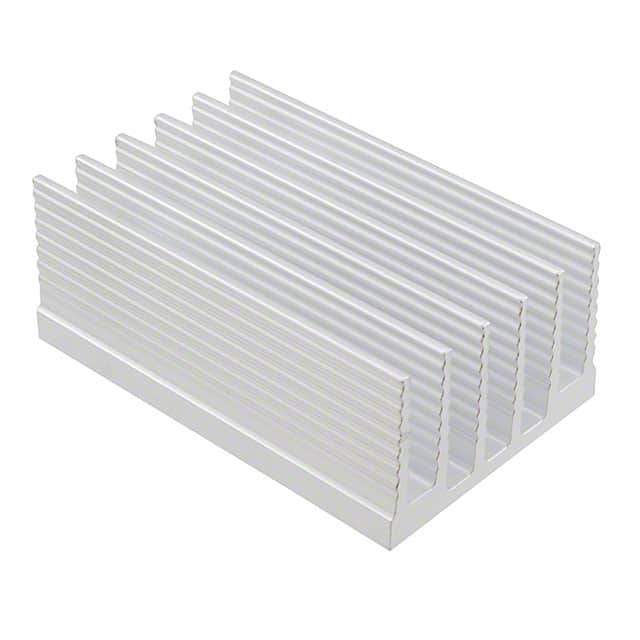

The Vicor 30190 is a micro heat sink designed for use with Vicor Micro-Sized Modules. It features aluminum 6063-T51 construction and a #4-40 UNC-2B thread.

Stock on Request

30190 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Vicor
Accessory Type	Heat Sink
For Use With	VICOR Micro-Sized Modules
Material	Aluminum 6063-T51
Mounting Type	Surface Mount
Thread Size	#4-40 UNC-2B

View Similar Products (0)

30190 Description

Short technical summary and product information.

The Vicor 30190 is a micro heat sink accessory, specifically designed for integration with Vicor Micro-Sized Modules. Constructed from durable Aluminum 6063-T51, this heat sink ensures effective thermal management for sensitive electronic components.

It features a #4-40 UNC-2B cold form tap thread, facilitating secure attachment in various applications. The heat sink is RoHS3 compliant, indicating adherence to environmental standards for hazardous substances.

This component is suitable for applications requiring reliable thermal dissipation in compact power supply designs. Its specific dimensions and threading are detailed in the manufacturer's documentation.

30190 Quick Information

Product Type: Heat Sink

Series: Micro

Canonical Name: Vicor 30190 Heat Sink

Subcategory: Thermal Management

30190 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

30190 Features

Micro heat sink for Vicor modules.
Constructed from Aluminum 6063-T51.
Features #4-40 UNC-2B thread.
RoHS3 compliant for environmental standards.
Designed for effective thermal management.

30190 Applications

Ideal for Vicor Micro-Sized Modules.
Used in compact power supply designs.
Suitable for thermal dissipation needs.
Ensures secure component attachment.

30190 FAQs

4 frequently asked questions generated from this part’s specifications.

What material is the Vicor 30190 heat sink made of?

The Vicor 30190 heat sink is made of Aluminum 6063-T51.

What is the thread size on the Vicor 30190 heat sink?

The Vicor 30190 heat sink has a #4-40 UNC-2B thread.

Is the Vicor 30190 heat sink RoHS compliant?

Yes, the Vicor 30190 heat sink is RoHS3 compliant.

What is the Moisture Sensitivity Level (MSL) for the Vicor 30190 heat sink?

The Moisture Sensitivity Level (MSL) for the Vicor 30190 heat sink is 1 Unlimited.
