| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Number of Cells | |
| Plating | |
| Style | |
| Termination Style |

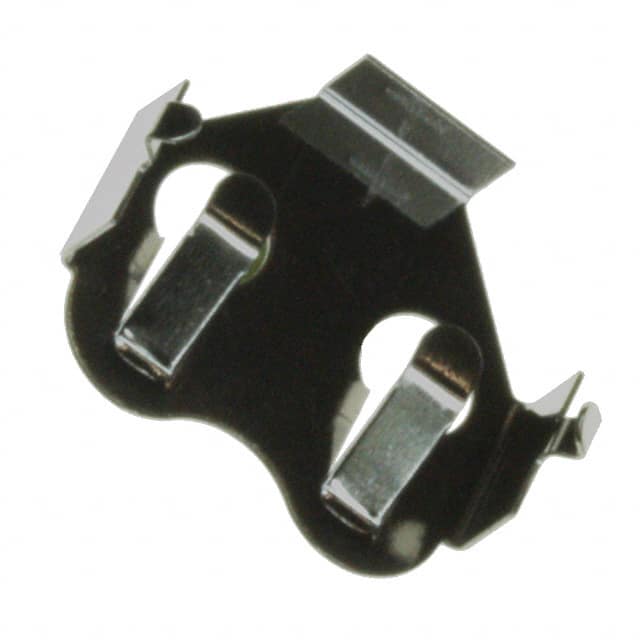

The Keystone Electronics 3013 is a through-hole coin cell retainer designed for single 16.0mm diameter coin cells. It accommodates battery series 1612, 1616, 1620, and 1632. The retainer is constructed from 0.010" (0.25mm) phosphor bronze with a tin-nickel plate finish, suitable for high-temperature soldering processes. The termination style is PC pin, and the height above board is 0.156" (3.96mm). This retainer is available in tape and reel packaging for automated assembly. The design includes solder tails located outside the retainer body for easy visual inspection of solder joints.
The height above board is 0.156" (3.96 mm).
It accommodates 16.0mm coin cell batteries, supporting series 1612, 1616, 1620, and 1632.
The datasheet header indicates RoHS compliance, and the existing database lists it as RoHS3 Compliant.
Mounting type is PCB, Through Hole, and termination style is PC Pin.
It is made of phosphor bronze with a tin-nickel plate finish.
The MSL is 1 (Unlimited).
