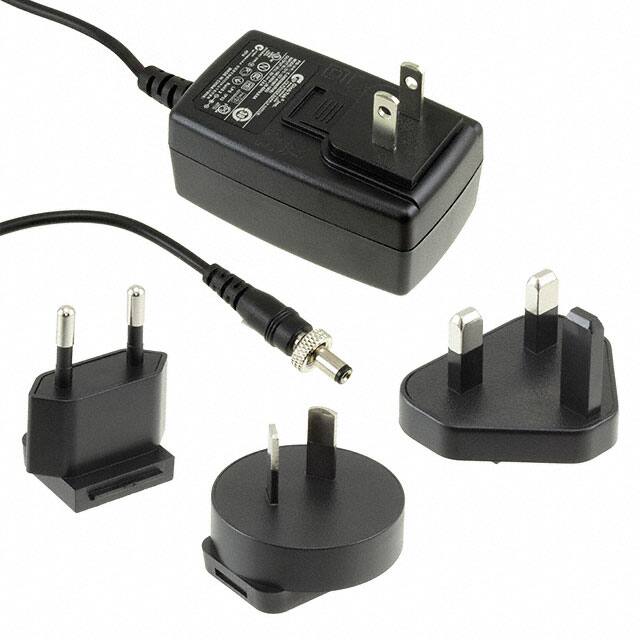

301-9000-23 The Digi 301-9000-23 is a 15W AC/DC wall mount adapter providing a 5VDC output at 3A. It features a universal input voltage range and a standard NEMA 1-15P input connector.
Mfr Part #:

301-9000-23

Mfr Name: Digi
Digi
The Digi 301-9000-23 is a 15W AC/DC wall mount adapter providing a 5VDC output at 3A. It features a universal input voltage range and a standard NEMA 1-15P input connector.
Stock on Request

301-9000-23 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Approval Agency
Automotive Grade
Cord Length
Current
Form
Industrial Grade
Input Connector
Input Frequency
Input Type
Input Voltage
Medical Grade
Military Grade
Operating Temperature
Output Connector
Output Current
Output Power
Output Voltage
Power (Watts)
Region Utilized
Voltage
View Similar Products (0)

301-9000-23 Description

Short technical summary and product information.

This AC/DC wall mount adapter from Digi, part number 301-9000-23, delivers 15 watts of power with a stable 5VDC output at up to 3A. It is designed for universal input voltage compatibility, accepting 100-240 VAC and operating at frequencies between 47-63 Hz.



The adapter features a Class II wall mount form factor and utilizes a NEMA 1-15P input connector. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug. Key electrical specifications include a line regulation of +/- 1% maximum and an output ripple of 1% typical. It also incorporates over-voltage and over-current protection with auto-recovery.



With dimensions of 74.0mm x 43.5mm x 34.0mm, this adapter is suitable for international use. It operates within a temperature range of 0°C to 40°C and meets CE and cULus approval agency standards. The unit is RoHS3 compliant and has an MSL rating of 1.

301-9000-23 Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: AC/DC Wall Mount Adapter
Subcategory: Wall Mount Adapter

301-9000-23 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

301-9000-23 Features

  • Provides 5VDC output at 3A.
  • Delivers a total of 15W power.
  • Universal input voltage range (100-240 VAC).
  • Class II wall mount form factor.
  • Features 2.1mm x 5.5mm barrel output connector.

301-9000-23 Applications

  • Suitable for international power applications.
  • Ideal for powering various electronic devices.
  • Compact design for easy integration.
  • Designed for reliable wall outlet use.

301-9000-23 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the form factor of this adapter?

Wall mount (Class II) with multi-blade input plugs.

What output voltage and current does it provide?

5 VDC at 3.0 A, rated 15W.

What protection features are included?

Over-voltage protection (limit<130%), over-current hiccup with auto recovery, and input fusing.

What EMI standards does the adapter comply with?

Comp lies with EN55022 Class B and FCC Part 15 Class B for both conducted and radiated emissions.
