| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

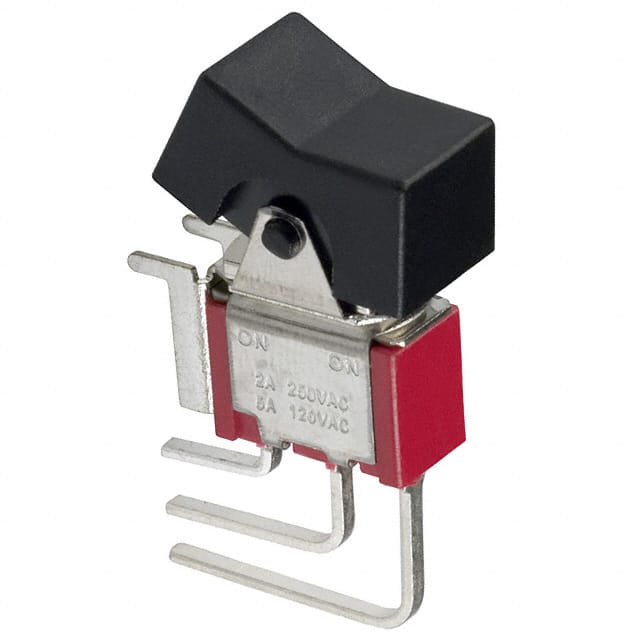

The E-Switch 300 Series 300SP1J1BLKM7QE is a miniature rocker switch designed for reliable operation in various applications. This specific model features a Single Pole Double Throw (SPDT) circuit with an On-On function, capable of handling 5A at 28V.
The switch has a black concave actuator and is constructed with epoxy-sealed terminals for enhanced durability. It is designed for through-hole mounting with a right-angle, vertical orientation.
Operating within a temperature range of -30°C to 85°C, this rocker switch is suitable for a wide array of industrial and commercial uses where a compact and robust switching solution is required. Its termination style is PC Pin, facilitating easy integration into circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 5A (AC/DC).
The operating voltage is 28 V.
It features an SPDT circuit.
The switch function is On-On.
The operating temperature range is -30°C to 85°C.
It is mounted through hole, with a right angle, vertical orientation.
The termination style is PC Pin.
