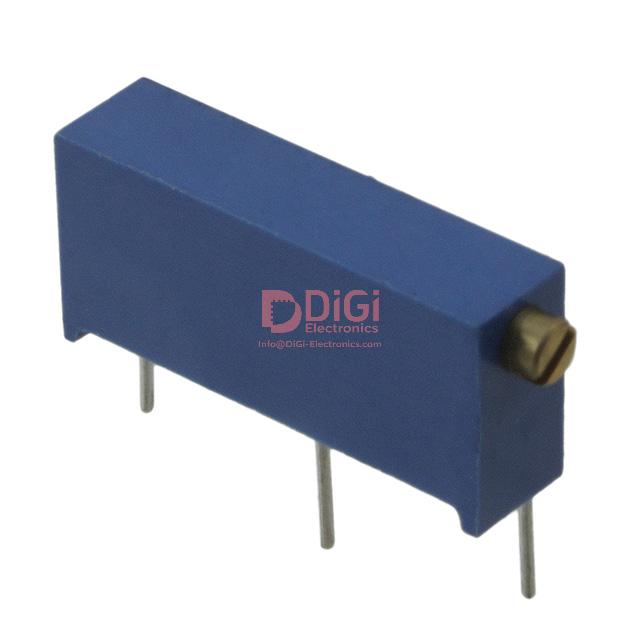

3009P-1-104 The Bourns 3009P-1-104LF is a trimmer potentiometer with 100 kΩ resistance and a power rating of 0.75W. It features through-hole mounting and PC pin termination.
Mfr Part #:

3009P-1-104

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 3009P-1-104LF is a trimmer potentiometer with 100 kΩ resistance and a power rating of 0.75W. It features through-hole mounting and PC pin termination.
✓ Total Stock: 20 pcs
$ Price Range: $0.05

3009P-1-104 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3009P-1-104 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Storage Temperature
Tape & Reel
Temperature Coefficient
Termination Style
Tolerance
View Similar Products (0)

3009P-1-104 Description

Short technical summary and product information.

This Bourns 3009P-1-104LF is a cermet trimmer potentiometer from the Trimpot® 3009 series. It offers a resistance value of 100 kΩ with a tolerance of ±10% and a power rating of 0.75W (3/4W).



The potentiometer has 15 turns and a side adjustment type, designed for through-hole mounting with PC pin terminations. Its dimensions are rectangular, measuring 0.354" x 0.190" face (8.98mm x 4.83mm).



Key electrical characteristics include a temperature coefficient of ±100ppm/°C. The component is suitable for various electronic applications requiring precise resistance adjustments. It is packaged in a tube for protection and ease of handling during assembly.

3009P-1-104 Quick Information

Product Type: Trimmer Potentiometer
Series: 3009 - Sealed
Canonical Name: Bourns 3009P-1-104LF Trimmer Potentiometer, 100 kΩ
Subcategory: Trimmer Potentiometers

3009P-1-104 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3009P-1-104 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3009P-1-104 Features

  • 100 kΩ resistance with ±10% tolerance.
  • 0.75W power rating.
  • 15 turns with side adjustment.
  • Through hole mounting with PC pins.
  • Cermet resistive material.

3009P-1-104 Applications

  • Ideal for circuit calibration.
  • Used in electronic test equipment.
  • Suitable for power supply adjustments.
  • Applicable in control systems.

3009P-1-104 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3009P-1-104LF trimmer potentiometer?

The resistance is 100 kΩ.

What is the power rating for the 3009P-1-104LF?

The power rating is 0.75W, or 3/4W.

What is the tolerance of the Bourns 3009P-1-104LF?

The tolerance is ±10%.

How many turns does the 3009P-1-104LF have?

It has 15 turns.

What type of adjustment is available on the 3009P-1-104LF?

It features a side adjustment.

What is the resistive material used in the 3009P-1-104LF?

The resistive material is Cermet.

What is the mounting type for this trimmer potentiometer?

The mounting type is Through Hole.
