| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

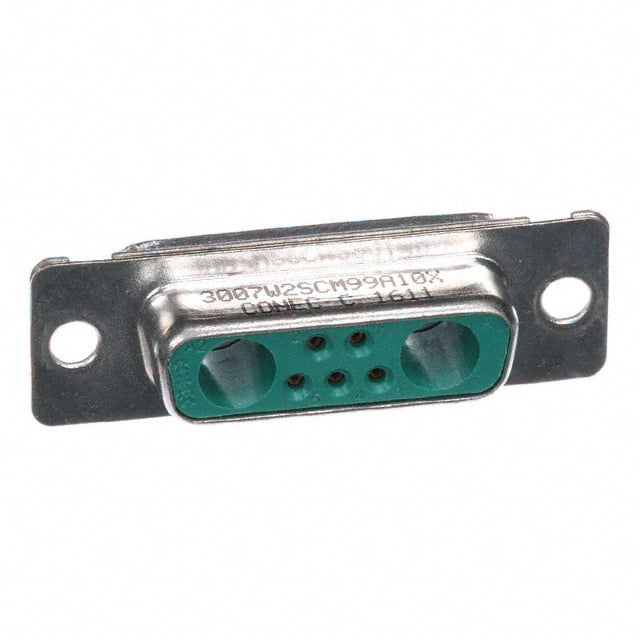

The 3007W2SCM99A10X is a D-Sub Combo receptacle from Conec with 7 positions configured as 5 signal and 2 coax or power positions. It features female sockets with gold plated contacts (30.0µin / 0.76µm) and is designed for free hanging (in-line) mounting. The connector uses solder cup termination, making it suitable for wire-to-wire connections.
The shell is made of steel with tin plating and has a shell size of DA-7W2 (2, DA, A). The flange feature is unthreaded housing/shell, and the housing material has a UL94 V-0 flammability rating. The contact type is signal and coax or power, but the contacts are not included and must be ordered separately.
The connector is reported as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though these compliance statuses are unverified. The operating temperature range, current rating, and voltage rating are not specified in the available data.
This connector is suitable for applications requiring a mix of signal and coaxial or power connections in a compact D-Sub combo form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.39 | $14.39 |
| 10+ | $12.76 | $12.76 |
| 25+ | $12.27 | $12.27 |
| 50+ | $11.77 | $11.77 |
| 100+ | $11.12 | $11.12 |
| 250+ | $10.14 | $10.14 |
| 500+ | $9.48 | $9.48 |
| 1,000+ | $9.26 | $9.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions, configured as 5 signal and 2 coax or power.
Free Hanging (In-Line).
Solder Cup.
Gold, 30.0µin (0.76µm).
2 (DA, A) - 7W2.
UL94 V-0.
