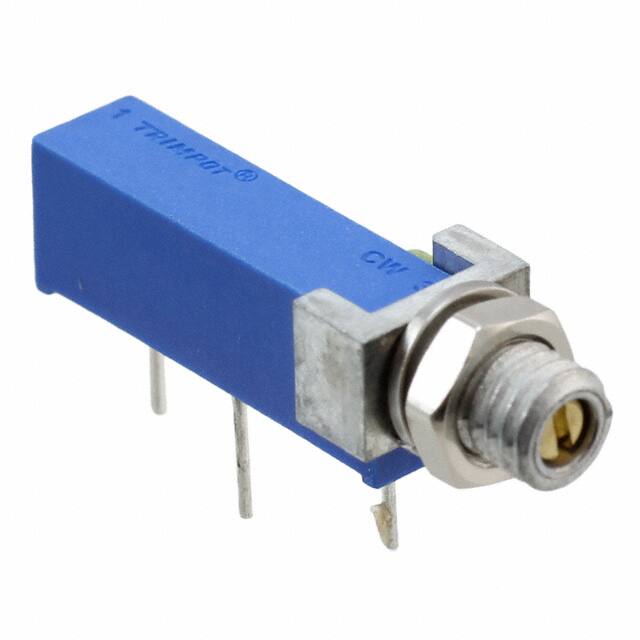

3006P-1-504ZLF The Bourns 3006P-1-504ZLF is a cermet trimmer potentiometer with 500 kΩ resistance and a ±10% tolerance. It is rated for 0.75W power and features PC pin termination.
Mfr Part #:

3006P-1-504ZLF

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 3006P-1-504ZLF is a cermet trimmer potentiometer with 500 kΩ resistance and a ±10% tolerance. It is rated for 0.75W power and features PC pin termination.
✓ Total Stock: 70 pcs
$ Price Range: $0.05

3006P-1-504ZLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3006P-1-504ZLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Insulation Resistance
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Storage Temperature
Tape & Reel
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
Torque
View Similar Products (0)

3006P-1-504ZLF Description

Short technical summary and product information.

The Bourns 3006P-1-504ZLF is a cermet trimmer potentiometer designed for industrial applications. It features a resistance value of 500 kΩ with a standard tolerance of ±10%. The potentiometer is rated to handle 0.75W of power at 70°C and has a wide operating temperature range of -55°C to +125°C.



This trimmer potentiometer offers 15 turns for precise adjustment and has an infinite resolution. The termination style is PC pins, and it supports panel mounting. The physical dimensions of the face are 0.250" x 0.190" (6.35mm x 4.83mm).



Environmental testing includes humidity resistance (MIL-STD-202 Method 103), vibration (20 G), and shock (50 G). It also meets U.L. 94V-0 flammability standards. The component is RoHS3 compliant and has an MSL of 1.

3006P-1-504ZLF Quick Information

Product Type: Trimmer Potentiometer
Series: 3006
Canonical Name: Bourns 3006P-1-504ZLF Trimmer Potentiometer
Subcategory: Trimmer

3006P-1-504ZLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3006P-1-504ZLF Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3006P-1-504ZLF Features

  • 500 kΩ resistance, ±10% tolerance.
  • 0.75W power rating at 70°C.
  • 15-turn adjustment for precision.
  • Cermet resistive element.
  • Panel mount with PC pin termination.

3006P-1-504ZLF Applications

  • Ideal for circuit calibration.
  • Used in industrial control systems.
  • Suitable for test and measurement equipment.
  • Applications requiring precise resistance adjustment.

3006P-1-504ZLF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the 3006P-1-504ZLF?

The resistance value is 500 kΩ.

What is the power rating of this trimmer potentiometer?

The power rating is 0.75W at 70°C.

What is the temperature coefficient?

The temperature coefficient is ±100ppm/°C.

How many turns does the 3006P-1-504ZLF have for adjustment?

It has 15 turns for adjustment.

What type of material is used for the resistive element?

The resistive material is Cermet.

What are the mounting and termination styles?

It features panel mount and through hole mounting with PC pin termination.

What is the standard package quantity?

The standard package quantity is 25 pieces per tube.
