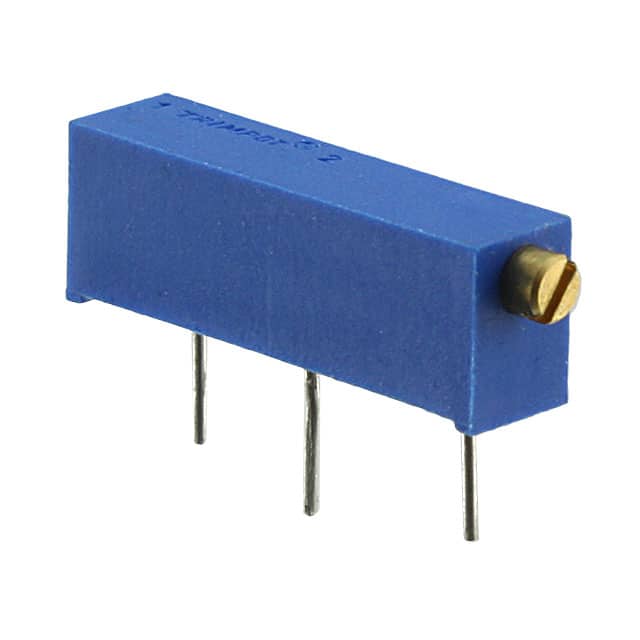

The Bourns 3006P-1-254LF is a 3/4 inch rectangular, multiturn, cermet trimming potentiometer. It features a low PC board profile, measuring only 1/4 inch high. The potentiometer offers a standard resistance range from 10 to 5 megohms, with this specific unit rated at 250 kΩ with a ±10% tolerance.
Electrical characteristics include infinite resolution, 1000 megohms minimum insulation resistance at 500 VDC, and a dielectric strength of 1000 VAC at sea level. The temperature coefficient is ±100 PPM/°C, and it operates within a temperature range of -55°C to +125°C. The power rating is 0.75 watt at 70°C.
This model is designed for through-hole mounting with PC pins for termination. It has an adjustment angle of 15 turns nominal and features side adjustment. The physical characteristics include a torque of 5.0 oz-in maximum and wiper idling mechanical stops. The component is sealed and suitable for industrial applications.
Environmental testing includes seal tests at 85°C, humidity resistance per MIL-STD-202 Method 103, vibration resistance at 20 G, and shock resistance at 50 G. Load life testing is conducted for 1,000 hours at 70°C with a 0.75 watt load, and rotational life is rated for 200 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Bourns 3006P-1-254LF trimmer potentiometer is 250 kΩ.
The tolerance for the 3006P-1-254LF trimmer potentiometer is ±10%.
The power rating of the 3006P-1-254LF trimmer potentiometer is 0.75W at 70°C.
The temperature coefficient of the 3006P-1-254LF trimmer potentiometer is ±100 PPM/°C.
The 3006P-1-254LF trimmer potentiometer is designed for through-hole mounting.
