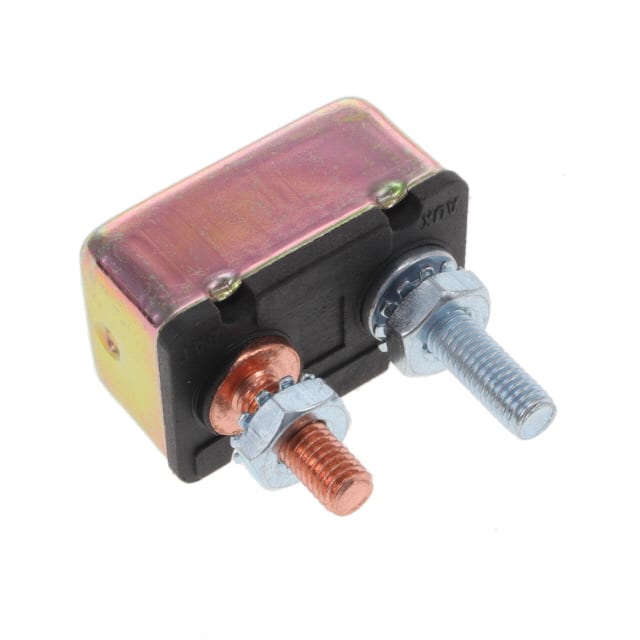

30056-10 The Littelfuse 30056-10 is a 10A, 12V circuit breaker with an automatic reset function. It is designed for chassis mounting.
Mfr Part #:

30056-10

Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The Littelfuse 30056-10 is a 10A, 12V circuit breaker with an automatic reset function. It is designed for chassis mounting.
Stock on Request

30056-10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

30056-10 Description

Short technical summary and product information.

This Littelfuse 30056-10 is a single-pole circuit breaker rated for 10 Amps and 12 Volts. It features an automatic reset mechanism, meaning it can be reset after tripping without manual intervention.



The breaker is designed for chassis mounting, providing a secure and stable installation in various equipment. It offers a current rating of 10A and a voltage rating of 12V, making it suitable for applications requiring moderate current protection.



Key specifications include a single pole configuration and no illumination. The RoHS status is compliant, and it has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under standard conditions. The REACH status is unaffected.



This circuit breaker is a reliable component for protecting electrical circuits from overcurrent conditions in applications where automatic resetting is desired.

30056-10 Quick Information

Product Type: Circuit Breaker
Canonical Name: Littelfuse Inc. 30056-10 Circuit Breaker

30056-10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

30056-10 Features

  • 10 Amp current rating.
  • 12 Volt voltage rating.
  • Automatic reset actuator.
  • Chassis mount type.
  • Single pole configuration.

30056-10 Applications

  • Protects circuits from overcurrent.
  • Suitable for 12V systems.
  • Used in equipment requiring reset.
  • Designed for chassis installations.

30056-10 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the 30056-10 circuit breaker?

The current rating is 10A.

What is the voltage rating for the 30056-10?

The voltage rating is 12V.

How is the 30056-10 circuit breaker mounted?

It is designed for chassis mounting.

Does the 30056-10 have an automatic reset?

Yes, it features an automatic reset actuator.

What is the RoHS status of the 30056-10?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.

30056-10 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
30128-10
30128-10
Littelfuse Inc.
The Littelfuse Inc. 30128-10 is a circuit breaker with a 10A current rating and 12V voltage rating. It features an automatic reset and chassis mount design.
View Part
ACBP-12-V-10A
ACBP-12-V-10A
OptiFuse
The OptiFuse ACBP-12-V-10A is an automotive circuit breaker with a 10A current rating and 12V voltage rating. It features an automatic reset function and chassis mounting.
View Part
30055-10
30055-10
Littelfuse Inc.
The Littelfuse 30055-10 is a 1-pole automatic reset circuit breaker rated at 10A and 12V. It features a chassis mount design for easy installation.
View Part
