| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Color | |
| Current | |
| Customs Tariff | |
| Disconnect Type | |
| EAN | |
| Flammability Class | |
| Fuse Size | |
| Fuse Type | |
| Height (@ On NS 32 rail) | |
| Height (@ On NS 35/15 rail) | |
| Height (@ On NS 35/7.5 rail) | |
| Industrial Grade | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Nominal Current (as fuse terminal block) | |
| Nominal Voltage (as fuse terminal block) | |
| Number of Levels | |
| Number of Positions | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Standard | |
| Standard Package Quantity | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width | |
| Wire Gauge Range | |
| Wire Gauge or Range |

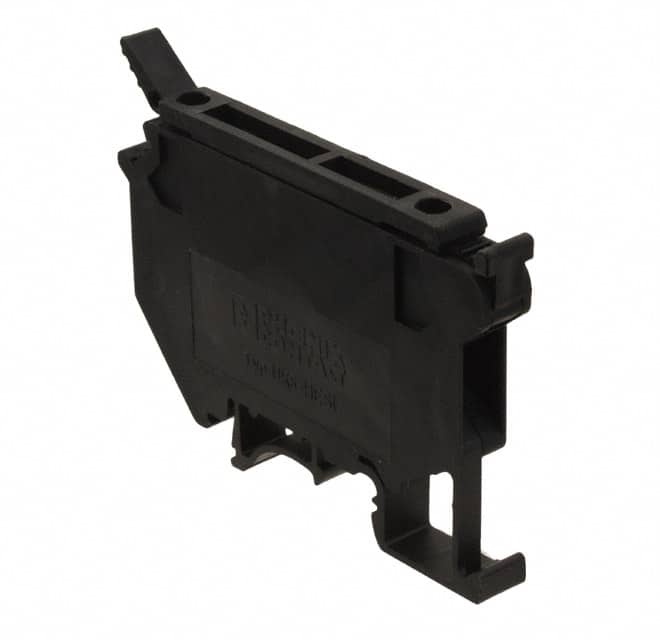

The Phoenix Contact 3004100 (UK 5-HESI) is a fuse terminal block designed for DIN rail mounting. It accommodates glass cartridge fuses in sizes 5x20mm, 5x25mm, and 5x30mm. The block features a screw termination style and accepts wire from 0.2 to 4 mm² (26-10 AWG).
Rated at 500V nominal voltage and 6.3A nominal current as a fuse terminal block, it meets IEC 60947-7-3 standards. The insulating material is polyamide (PA) with a flammability class of UL 94 V2. Dimensions are 8.2mm width, 72.5mm length, and height varies by rail type (56.5mm on NS 35/7.5, 64mm on NS 35/15, 61.5mm on NS 32).
This component is suitable for industrial control panels and power distribution applications requiring overcurrent protection. It is RoHS compliant and packaged in quantities of 50 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.67 | $10.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 0.2-4 mm² (26-10 AWG) solid or stranded wire.
It supports 5x20mm, 5x25mm, and 5x30mm glass fuses.
As a fuse terminal block, nominal voltage is 500V and nominal current is 6.3A.
It mounts on DIN rails: NS 35/7.5, NS 35/15, or NS 32.
The housing is polyamide (PA) with UL 94 V2 flammability class.
