| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Material | |
| Mounting Style | |
| Mounting Type | |
| Number of Cells | |
| Package Type | |
| Plating | |
| Style | |
| Tape and Reel | |
| Termination Style |

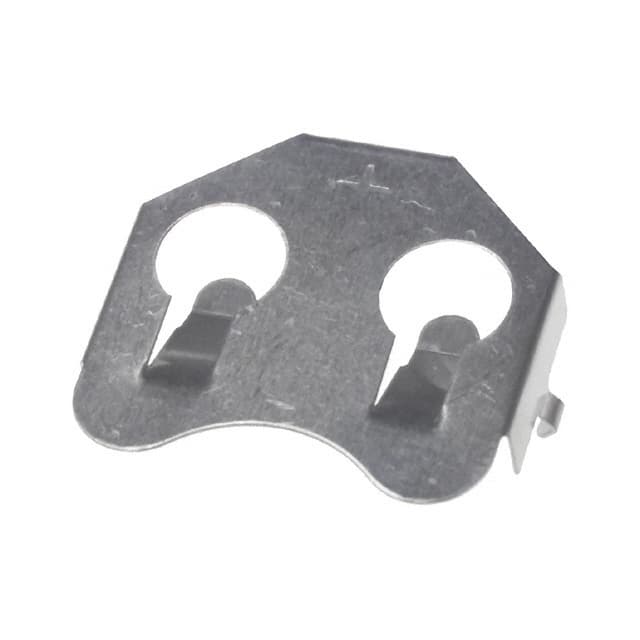

The Keystone Electronics 3003 is a through-hole coin cell retainer designed to hold a single 20.0mm coin cell battery. It features PC pin termination for secure PCB mounting and a height above board of 0.156 inches (3.96mm).
The retainer is constructed from 0.010 inch (0.25mm) phosphor bronze with a tin-nickel plate finish, offering durability and compatibility with lead-free soldering processes. It is compatible with coin cell series 2016, 2020, 2025, and 2032.
This retainer is suitable for applications requiring a reliable battery contact solution. It is available on tape and reel for automated assembly.
The Keystone 3003 uses through-hole PCB mounting with PC pin termination.
The 3003 retainer supports 20.0mm coin cells, compatible with series 2016, 2020, 2025, and 2032.
The retainer is made of 0.010 inch (0.25mm) phosphor bronze with a tin-nickel plate finish.
The 3003 is listed as RoHS3 compliant, though this status is unverified.
