| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
380 pcs
|
380 pcs | On Request | 1 | On Request | On Request | 2333 | On Request | On Request | |
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Number of Cells | |
| Style | |
| Tape & Reel | |
| Tape and Reel | |
| Termination Style |

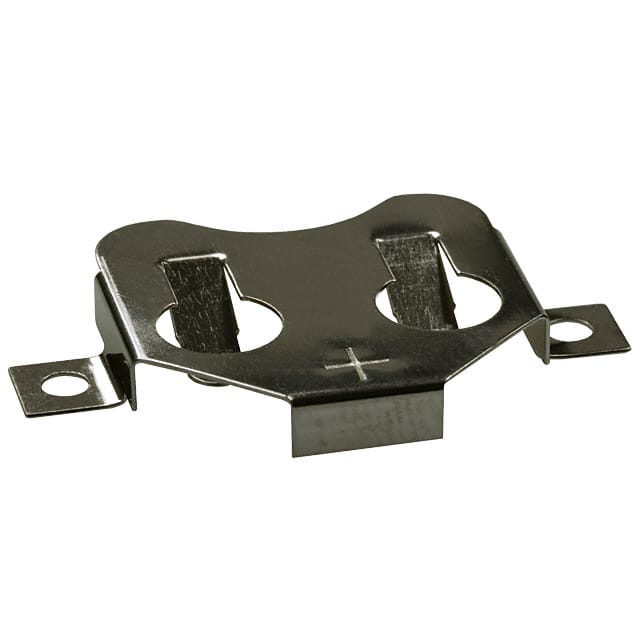

The Keystone Electronics 3002TR is a surface mount coin cell retainer designed for 20mm diameter batteries. It accommodates a single cell and supports battery series 2016, 2020, 2025, and 2032. The retainer features a height above board of 3.96mm (0.156 inches) and uses SMD (SMT) tab termination for easy PCB mounting.
Constructed from phosphor bronze with a tin-nickel plate, this retainer is compatible with both wave and reflow soldering processes. The solder tails are located outside the retainer body to facilitate visual inspection of solder joints. The tin-nickel plating is suitable for lead-free, high-temperature soldering applications.
The 3002TR is available on tape and reel for automated assembly. It is designed for use in a variety of battery-powered devices requiring a reliable coin cell connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.90 | $0.90 |
| 10+ | $0.75 | $0.75 |
| 25+ | $0.68 | $0.68 |
| 100+ | $0.61 | $0.61 |
| 500+ | $0.52 | $0.52 |
| 1,000+ | $0.45 | $0.45 |
| 2,500+ | $0.44 | $0.44 |
| 5,000+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports 20mm coin cell batteries, compatible with series 2016, 2020, 2025, and 2032.
It holds 1 cell.
PCB surface mount with SMD (SMT) tab termination.
3.96mm (0.156 inches).
Phosphor bronze with tin-nickel plate.
RoHS3 compliant (unverified).
SMD (SMT) tab.
