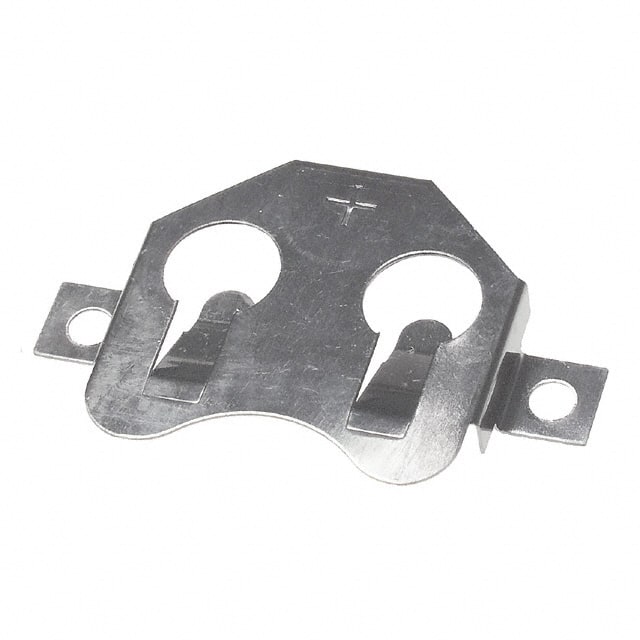

The Keystone Electronics 3002 is a surface mount coin cell retainer designed for 20mm diameter batteries. It holds a single cell and features SMD (SMT) tab termination, facilitating visual inspection of solder joints. The retainer is constructed from 0.010 inch (0.25mm) phosphor bronze with matte tin plating, suitable for lower soldering temperatures and compatible with both wave and reflow operations.
This retainer is compatible with battery series 2016, 2020, 2025, and 2032, providing flexibility for various power requirements. The height above the PCB is 0.156 inches (3.96mm), enabling compact designs. The solder tails are located outside the body, ensuring easy inspection and reliable connections.
The component is available on tape and reel, meeting ANSI/EIA-481 standards, and is suitable for automated pick-and-place assembly. The mounting type is PCB surface mount, with a negative contact pad layout recommended at 0.156 inches square minimum.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.39 | $0.39 |
| 25+ | $0.36 | $0.36 |
| 100+ | $0.32 | $0.32 |
| 500+ | $0.29 | $0.29 |
| 1,000+ | $0.26 | $0.26 |
| 2,500+ | $0.24 | $0.24 |
| 5,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is listed as RoHS3 Compliant, but the data is unverified (low confidence).
PCB, Surface Mount with SMD (SMT) Tab termination.
Designed for 20mm coin cells, compatible with series 2016, 2020, 2025, 2032.
Phosphor Bronze with Matte Tin plating.
One cell.
0.156 inches (3.96mm).
Yes, it is available on tape and reel.
