| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Connection Method | |
| Country of Origin | |
| Current Rating (Amps) | |
| Height | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight | |
| Width |

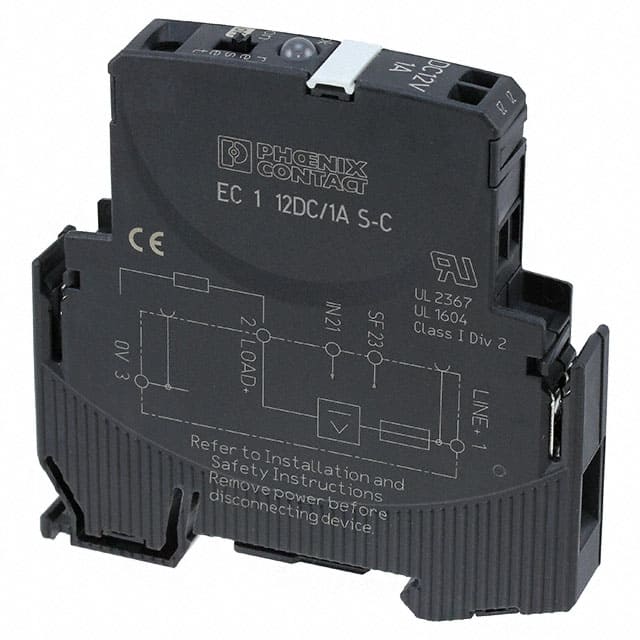

The Phoenix Contact 3000754 is a single-pole, solid-state electronic device circuit breaker designed for DC applications. It features a nominal current rating of 1A and an operating voltage of 12VDC, making it suitable for low-voltage protection circuits.
This circuit breaker utilizes a screw connection for wiring, supporting solid and flexible conductors ranging from 0.5 mm² to 10 mm². It has a compact width of 12.5 mm and a height of 80 mm, designed for convenient mounting on a 35 mm DIN rail. The operating temperature range is from -20 °C to 60 °C.
Key specifications include a stripping length of 10 mm and an M4 screw thread, with a recommended tightening torque between 1.5 Nm and 1.8 Nm. The device offers an on/off control input via a slide switch actuator.
It is manufactured in Germany and comes with various international approvals, including UL Recognized, cUL Recognized, EAC, UL Listed, cUL Listed, GL, cULus Recognized, and cULus Listed.
The operating voltage is 12 VDC.
The operating temperature range is -20 °C to 60 °C.
The nominal current rating is 1 A.
It is a solid state circuit breaker with one pole.
It mounts on a 35 mm DIN rail.
It uses screw connection terminals with M4 screws and a 10 mm stripping length.
Solid and flexible conductors from 0.5 to 10 mm² are supported; two-conductor connections accept 0.5 to 4 mm².
