| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch |

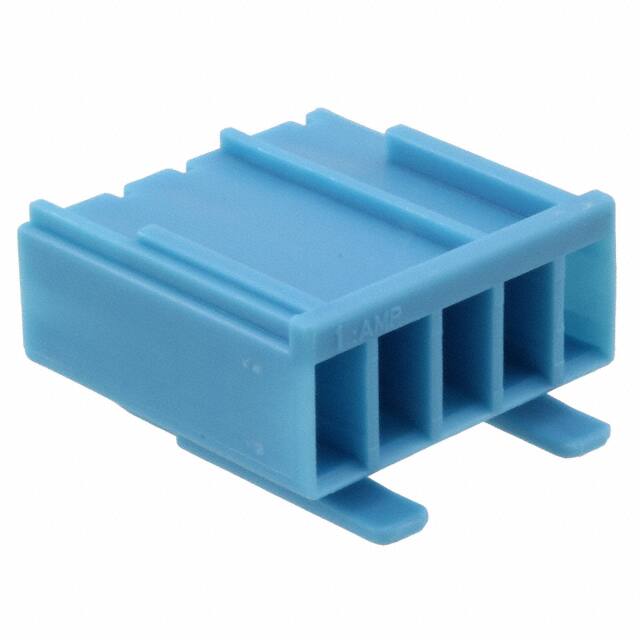

The TE Connectivity 3-928247-5 is a rectangular connector housing designed for 5 positions in a single row with a 5.00mm pitch. It is a receptacle type housing that accepts female socket contacts (sold separately). The housing features a latch lock fastening mechanism for secure mating and is designed for free hanging (in-line) mounting. Color is blue. Contact termination is crimp. The housing accepts tab contacts of 6.3mm x 0.8mm and 4.8mm x 0.8mm according to DIN 46244.
The housing is rated for glow wire testing at 750°C without flame per EN 60335, and has an operating temperature range of -40°C to 110°C. It is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). Compliance statuses are unverified. The part is from TE Connectivity, part number 3-928247-5.
| Qty | Low | High |
|---|---|---|
| 31,250+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
5.00mm (0.197 inches).
Free hanging (in-line) mounting.
Latch lock.
-40°C to 110°C.
Yes, it is tested at 750°C without flame per EN 60335.
Crimp termination.
