Mfr Part #:

3-87579-5

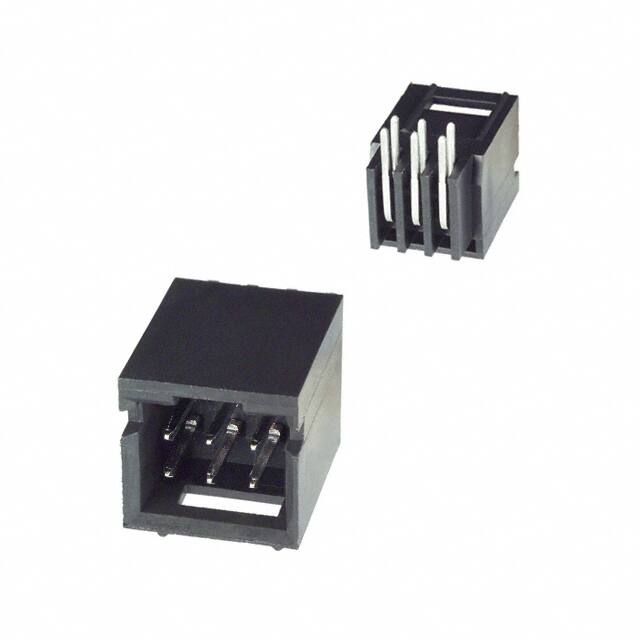

This is a 6-position, 2-row, right-angle header from TE Connectivity with a 2.54mm pitch. It features a shrouded 4-wall design, male pins, and is rated for 3A current.

✓ Total Stock: 276 pcs

$ Price Range: $1.11

3-87579-5 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
OTL Components ✓ Non-Authorised Inventory information	276 pcs On Request	276 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

3-87579-5 Description

Short technical summary and product information.

The TE Connectivity 3-87579-5 is a 6-position, 2-row rectangular header with male pins. It is designed for through-hole, right-angle mounting on a printed circuit board. The connector features a 4-wall shrouded housing that provides mechanical protection and alignment during mating. The pitch is 2.54mm (0.100 inches) and row spacing is also 2.54mm, making it compatible with standard 0.100-inch grid patterns.

The header is rated for 3A continuous current per pin and operates over a temperature range of -65°C to 105°C. The contact material is phosphor bronze with a tin-lead finish (100.0µin / 2.54µm thickness). The insulation is made of thermoplastic with a UL94 V-0 flammability rating. The connector is suitable for board-to-board or cable-to-board applications where a secure, shrouded connection is required.

All 6 positions are loaded, providing full pin count. The right-angle orientation allows for low-profile connections parallel to the board. The detent lock fastening type ensures retention during vibration.

3-87579-5 Quick Information

Product Type: Header, Male Pins

Canonical Name: TE Connectivity 6 Position Header, Male Pins, Right Angle, 2.54mm Pitch, Shrouded

Subcategory: Shrouded, Right Angle Header

3-87579-5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: Non-Compliant

3-87579-5 Estimated Pricing

Qty	Low	High
464+	$1.11	$1.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-87579-5 Features

6-position, 2-row configuration.
Right-angle through-hole mounting.
Shrouded 4-wall design for protection.
Rated for 3A continuous current.
Operating temperature range -65°C to 105°C.

3-87579-5 Applications

Board-to-board and cable interconnection.
Industrial control and automation systems.
Telecommunications and networking equipment.
Automotive electronic control modules.

3-87579-5 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this header have?

6 positions, all loaded.

What is the pitch of this connector?

2.54mm (0.100 inches).

What is the current rating?

3A per contact.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.

Is the header shrouded?

Yes, it features a 4-wall shrouded design.

What is the contact finish?

Tin-lead finish with 100.0µin (2.54µm) thickness.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Tin-Lead
Contact Finish Thickness	100.0µin (2.54µm)
Contact Length	3.43mm (0.135")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	10.16mm (0.400")
Insulation Material	Thermoplastic
Lead Spacing	2.54 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-65°C ~ 105°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
