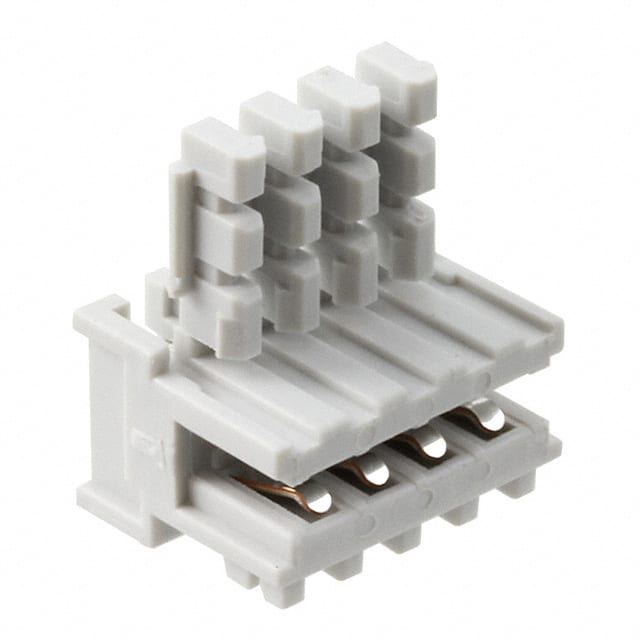

3-829868-4 TE Connectivity 3-829868-4 is a 4-position IDC receptacle with 22 AWG wire, tin contacts, and gray housing. It is designed for free hanging (in-line) mounting and mates to a PCB.
Mfr Part #:

3-829868-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 3-829868-4 is a 4-position IDC receptacle with 22 AWG wire, tin contacts, and gray housing. It is designed for free hanging (in-line) mounting and mates to a PCB.
✓ Total Stock: 10,900 pcs

3-829868-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
10,900 pcs
On Request
10900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-829868-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

3-829868-4 Description

Short technical summary and product information.

The TE Connectivity 3-829868-4 is a 4-position IDC (Insulation Displacement Connector) receptacle designed for 22 AWG discrete wire. This connector features a single row of female socket contacts with tin plating, arranged at a 2.50mm (0.098 inch) pitch. The housing is gray and supports free hanging (in-line) mounting, making it suitable for wire-to-board applications where a reliable, low-profile connection is needed.



Key specifications include a wire gauge of 22 AWG, IDC cable termination for quick assembly without stripping, and a contact finish of tin. The connector is designed to mate with a PCB header, providing a secure connection. The free hanging mounting style allows for flexible routing in harnesses and cable assemblies.



This connector is part of TE Connectivity's rectangular connector family and is RoHS3 and REACH compliant (unverified). The MSL rating is 1 (unlimited) for moisture sensitivity. Please note that datasheet and manufacturer page were not verified, and pricing is not available from distributors.

3-829868-4 Quick Information

Product Type: IDC Receptacle
Canonical Name: TE Connectivity 3-829868-4 4 Position IDC Receptacle, 22 AWG, Tin, Gray, Free Hanging
Subcategory: IDC Receptacle

3-829868-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

3-829868-4 Features

  • 4 positions with 2.50mm pitch.
  • IDC termination for 22 AWG wire.
  • Tin female socket contacts.
  • Gray housing, free hanging mounting.
  • Mates to PCB header.

3-829868-4 Applications

  • Wire-to-board connections in cable harnesses.
  • Discrete wire routing in control panels.
  • Low-profile signal interconnects.
  • Prototyping and test fixtures.

3-829868-4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

This connector has 4 positions.

What is the pitch of the connector?

The pitch is 2.50mm (0.098 inches).

What mounting type does this connector use?

It uses free hanging (in-line) mounting.

What wire gauge is supported?

It supports 22 AWG discrete wire.

What termination type is used?

IDC (Insulation Displacement Connector) termination.

What is the contact finish?

The contacts are finished with tin.

Does this connector mate to a PCB?

Yes, it features 'Mates to PCB' design.
