| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

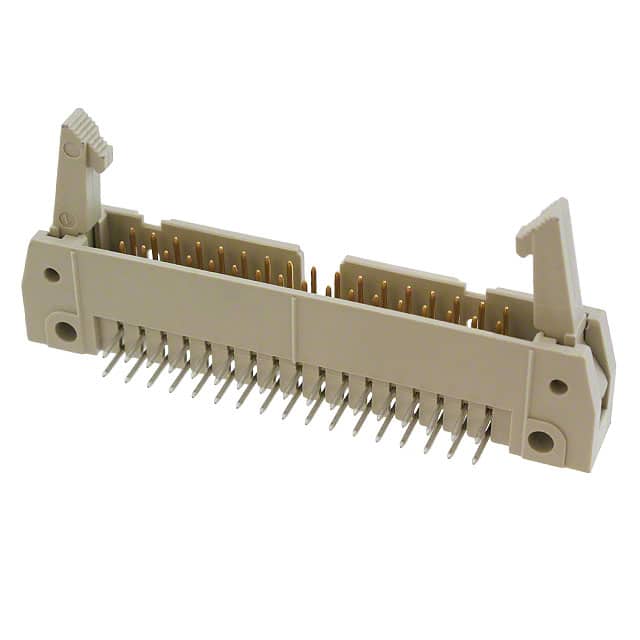

The TE Connectivity 3-828586-4 is a 34-position, 2-row, right angle header designed for board-to-cable/wire applications. It features male pin contacts on a 2.54mm (0.100") pitch with a row spacing of 0.100" (2.54mm). The connector is fully shrouded with a 4-wall design and includes latch lock/eject hooks for secure mating.
This header is through-hole mounted and terminated via solder. The insulation is gray, and the contacts are finished with gold or gold-palladium to a thickness of 31.5µin (0.80µm). All positions are loaded, and the design includes a keying slot and mounting flange for alignment.
The 3-828586-4 is suitable for applications requiring reliable wire-to-board connections with a positive locking mechanism. Its right-angle orientation allows for space-saving layouts on PCBs. The part is commonly used in industrial and commercial equipment.
| Qty | Low | High |
|---|---|---|
| 340+ | $1.93 | $1.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions in 2 rows.
2.54mm (0.100").
Through hole, right angle.
Gold or gold-palladium with 31.5µin thickness.
Latch lock/eject hooks.
Yes, fully shrouded with 4 walls.
Gray.
