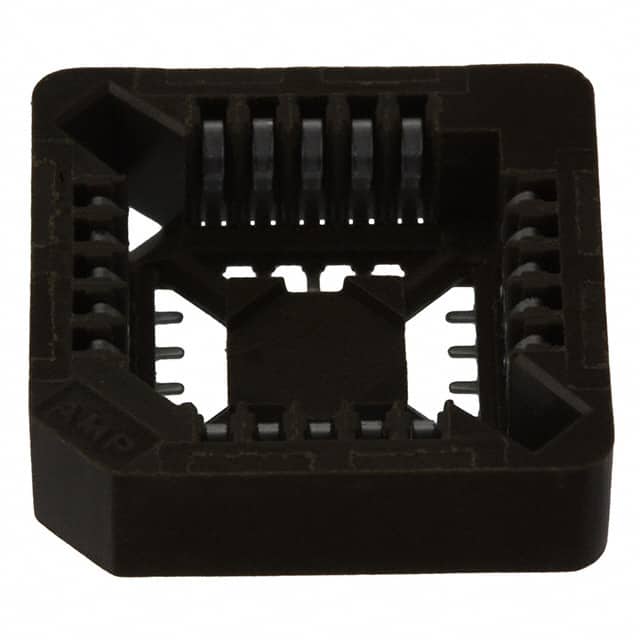

The TE Connectivity 3-822516-3 is a 20-position PLCC socket designed for surface mount applications. It features a 1.27mm (0.050") pitch and a closed frame thermoplastic housing that provides mechanical protection and reliable alignment for PLCC IC packages.
The contacts are made of phosphor bronze with a tin finish of 100µin (2.54µm), ensuring good conductivity and solderability. The socket uses surface mount solder termination, making it suitable for automated assembly processes. The housing material is thermoplastic, offering durability and thermal stability.
This socket is intended for use with 20-pin PLCC devices in a 4x5 grid arrangement. It is commonly used in programming, testing, and production environments where a reliable, removable connection is required. The closed frame design helps prevent damage to the IC during insertion and extraction.
20 positions arranged in a 4x5 grid.
1.27mm (0.050 inches).
Surface mount with solder termination.
Tin with 100µin thickness.
Phosphor bronze.
Thermoplastic.
Yes, it features a closed frame design.
