| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,147 pcs
|
4147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

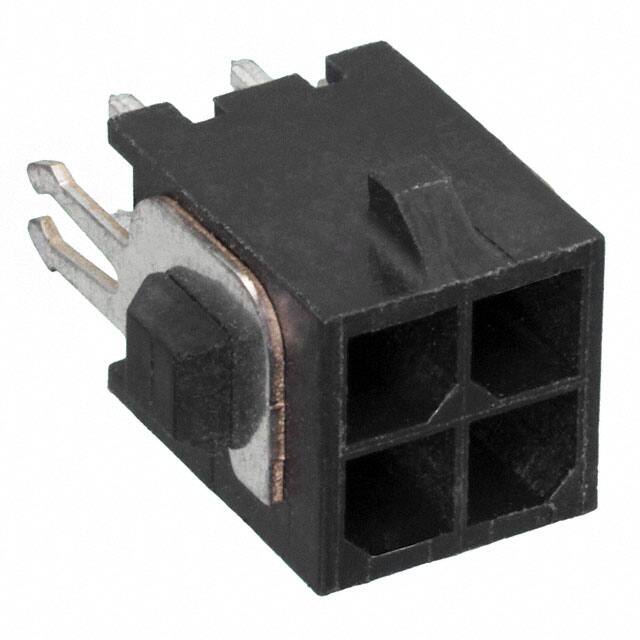

The TE Connectivity 3-794681-4 is a 4-position, 2-row header with male pins in a square contact shape, featuring a 3.00mm pitch and 3.00mm row spacing. The connector uses a through-hole mounting style with solder termination and is designed for board-to-cable/wire applications. The header is fully shrouded (4-wall) for robust mating, secured with a locking ramp fastening type and includes a board lock feature for additional retention. The insulator is black polyamide (PA), nylon with a UL94 V-0 flammability rating, and operates over a temperature range of -40°C to 105°C. Contacts are brass with a tin finish (0.38µm thickness) and a contact length of 3.18mm. The voltage rating is 250V. This header is suitable for general-purpose rectangular connector applications requiring a secure, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
| 10+ | $1.90 | $1.90 |
| 25+ | $1.74 | $1.74 |
| 100+ | $1.68 | $1.68 |
| 250+ | $1.46 | $1.46 |
| 377+ | $1.37 | $1.37 |
| 1,131+ | $1.29 | $1.29 |
| 5,278+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm and the row spacing is also 3.00mm.
It has 4 positions arranged in 2 rows, all loaded.
The voltage rating is 250V.
It is a through hole mount connector with solder termination.
The operating temperature range is -40°C to 105°C.
Contacts are brass with a tin finish.
