Mfr Part #:

3-794678-6

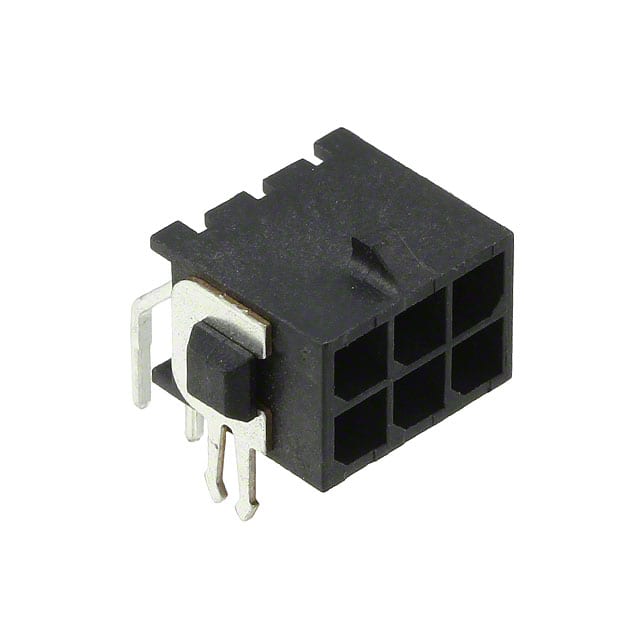

TE Connectivity Micro MATE-N-LOK 3-794678-6 is a 6-position, 2-row, 3mm pitch, right angle, through-hole shrouded header with male pins and board lock.

✓ Total Stock: 286 pcs

$ Price Range: $1.55

3-794678-6 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	286 pcs On Request	286 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

3-794678-6 Description

Short technical summary and product information.

The TE Connectivity 3-794678-6 is a 6-position, 2-row, shrouded header from the Micro MATE-N-LOK family. It features a 3.00mm pitch and 3.00mm row spacing, with a right angle orientation for through-hole mounting. The header is designed for board-to-cable/wire applications and includes a locking ramp for secure mating. The insulation is made of black UL94 V-0 rated nylon, ensuring flame retardancy.

The contacts are brass with a tin finish on the solder tails and a minimum gold or palladium nickel finish on the mating area. The operating temperature range is -40°C to 105°C, with a voltage rating of 250V. The current rating varies by wire gauge. The header includes a board lock feature for additional mechanical retention.

The recommended PCB thickness is 1.57mm. The counterpart connector is the TE Connectivity 794617 series. This product is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.

3-794678-6 Quick Information

Product Type: Header, Male Pins

Series: 794678

Canonical Name: TE Connectivity Micro MATE-N-LOK 3-794678-6 Header, Male Pins, 6 Positions, 3mm Pitch, Right Angle, Through Hole

Subcategory: Right Angle Header

3-794678-6 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

3-794678-6 Estimated Pricing

Qty	Low	High
3,146+	$1.55	$1.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-794678-6 Features

6-position, 2-row, 3.00mm pitch header.
Right angle orientation for through-hole mounting.
Shrouded with 4-wall design and locking ramp.
Board lock feature for secure PCB retention.
UL94 V-0 flame retardant insulation.

3-794678-6 Applications

Board-to-cable/wire interconnection applications.
Industrial control and automation systems.
Consumer electronics requiring secure connections.
Power supply and signal wiring harnesses.

3-794678-6 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 3-794678-6 header have?

6 positions in 2 rows.

What is the pitch of this header?

3.00mm.

What is the mounting style?

Through hole, right angle.

What is the voltage rating?

250V.

What is the operating temperature range?

-40°C to 105°C.

What is the insulation material and flammability rating?

Black nylon (PA) with UL94 V-0 rating.

What is the current rating?

Varies by wire gauge.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	0.38µm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Black
Insulation Height	7.37mm
Insulation Material	Polyamide (PA), Nylon
Lead Spacing	3.0 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6 Positions
Number of Positions Loaded	All
Number of Rows	2 Rows
Operating Temperature	-40°C ~ 105°C
Pitch	3.00mm
Row Spacing	3.00mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250V
