| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,288 pcs
|
2288 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

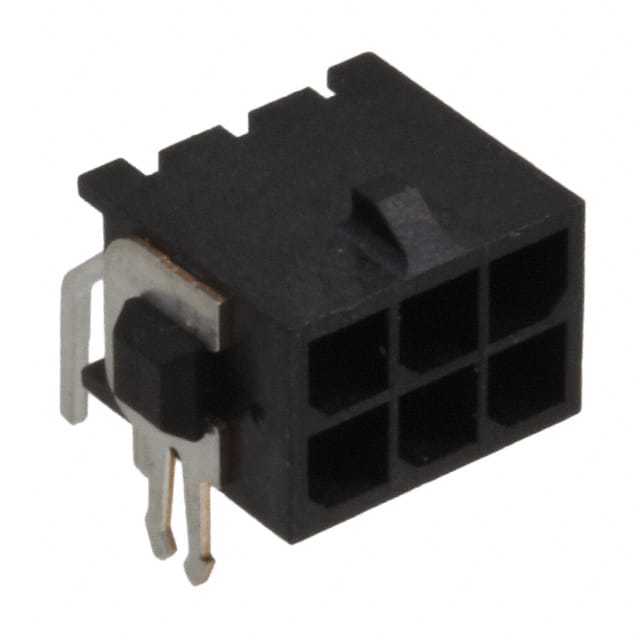

The TE Connectivity 3-794677-6 is a 6-position rectangular connector header designed for board-to-cable/wire applications. This shrouded header features a 4-wall design with a locking ramp for secure mating. The connector uses 2 rows of male pin contacts with a 3.00mm pitch and 3.00mm row spacing. Contacts are made of brass with a tin finish (2.54µm thickness) and a square contact shape for reliable connections.
This header is configured for through hole, right angle mounting with solder termination. The insulation body is molded from black polyamide (nylon) with a flammability rating of UL94 V-0. The header includes a board lock feature for secure attachment to the PCB during assembly. Operating temperature range is -40°C to 105°C.
Designed for applications requiring a robust, shrouded connection interface, this header supports a voltage rating of 250V. Current rating varies by wire gauge, making it suitable for a wide range of signal and power circuits within its ratings.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
| 10+ | $1.89 | $1.89 |
| 286+ | $1.49 | $1.49 |
| 572+ | $1.42 | $1.42 |
| 1,144+ | $1.35 | $1.35 |
| 5,148+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded, in 2 rows.
3.00mm pitch with 3.00mm row spacing.
Through hole, right angle mounting with solder termination.
250V.
-40°C to 105°C.
Black polyamide (nylon) with UL94 V-0 rating.
