| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

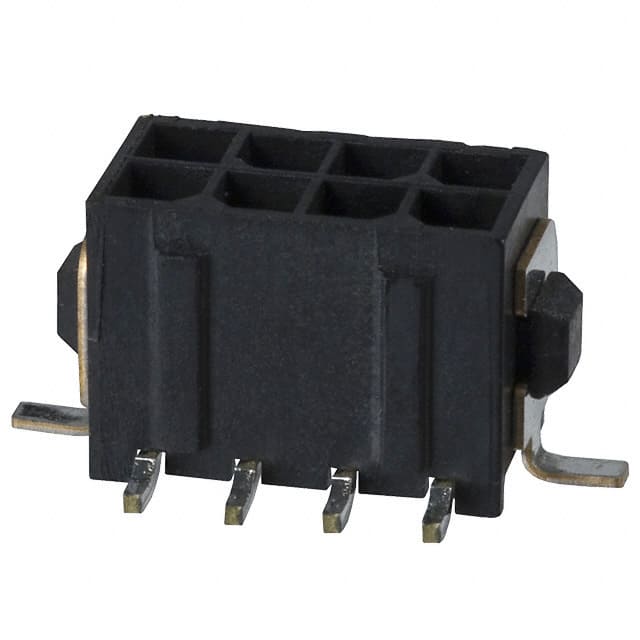

The TE Connectivity 3-794636-8 is a shrouded (4-wall) board-to-cable/wire header with 8 positions arranged in 2 rows at a 3.00mm pitch. It is designed for surface mount soldering and features male square pins with a brass base and a tin finish of 100.0µin (2.54µm). The insulation is black polyamide (PA) nylon rated UL94 V-0, with an insulation height of 9.25mm.
This connector includes a locking ramp fastening mechanism and solder retention features. It is rated for 250V and -40°C to 105°C operating temperature. The current rating varies by wire gauge; consult the product datasheet for precise values based on specific application conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.53 | $3.53 |
| 10+ | $3.06 | $3.06 |
| 25+ | $3.03 | $3.03 |
| 100+ | $2.50 | $2.50 |
| 175+ | $2.31 | $2.31 |
| 350+ | $2.24 | $2.24 |
| 875+ | $2.23 | $2.23 |
| 2,450+ | $2.12 | $2.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
3.00mm (0.118").
250V.
Surface mount (SMD).
