| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

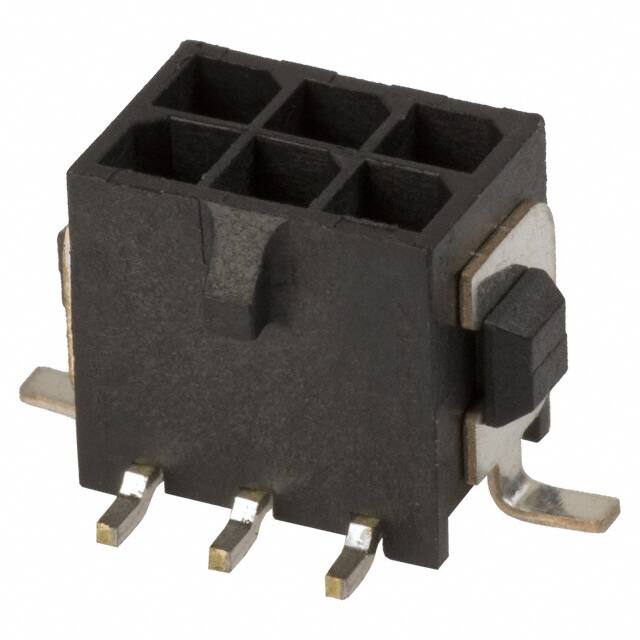

The TE Connectivity 3-794636-6 is a 6-position, 2-row, 3.00mm pitch shrouded header connector designed for board-to-cable/wire applications. It features a surface mount termination with solder retention for reliable PCB attachment. The connector is fully shrouded with a 4-wall design and includes a locking ramp for secure mating.
Key specifications include a voltage rating of 250V, operating temperature range of -40°C to 105°C, and insulation material of polyamide (nylon) with UL94 V-0 flammability rating. Contacts are made of brass with tin finish (2.54µm). The insulation height is 9.25mm.
This connector is suitable for various applications requiring a compact, reliable interconnect. The solder retention feature helps withstand reflow soldering processes. The locking ramp ensures the connector stays mated during vibration.
Note: Current rating varies by wire gauge. The component is available in tape and reel packaging (as per cross references).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
| 10+ | $1.73 | $1.73 |
| 25+ | $1.63 | $1.63 |
| 100+ | $1.49 | $1.49 |
| 175+ | $1.41 | $1.41 |
| 4,900+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 6 positions.
The pitch is 3.00mm.
The voltage rating is 250V.
This connector is surface mount.
The operating temperature range is -40°C to 105°C.
The contact finish is tin with a thickness of 2.54µm.
Yes, it features a 4-wall shrouded design with a locking ramp.
