| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,025 pcs
|
4025 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

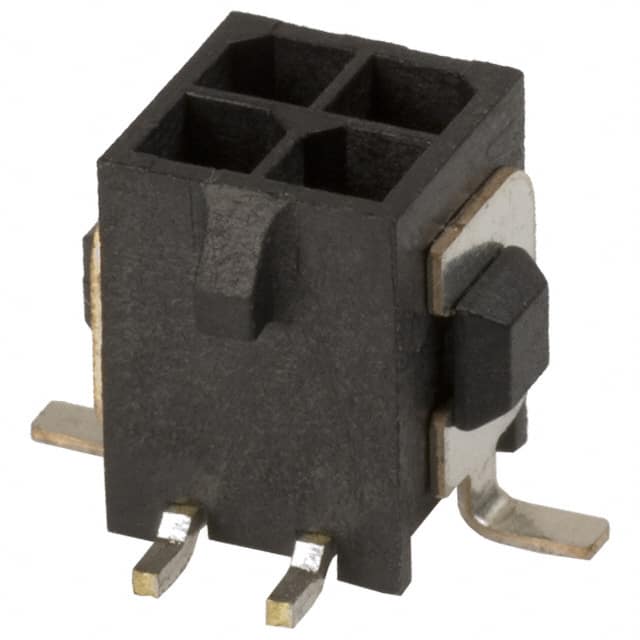

The TE Connectivity 3-794636-4 is a 4-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 3.00mm pitch and row spacing, with a surface mount termination style. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating. Contacts are made of brass with a tin finish (100.0µin thickness) and have a square shape. The insulation is black polyamide (PA) nylon with a UL94 V-0 flammability rating. The insulation height is 9.25mm. Solder retention features are included for reliable board attachment. The operating temperature range is -40°C to 105°C, and the voltage rating is 250V. Current rating varies by wire gauge.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.75 | $2.75 |
| 10+ | $2.49 | $2.49 |
| 25+ | $2.37 | $2.37 |
| 100+ | $1.76 | $1.76 |
| 175+ | $1.58 | $1.58 |
| 350+ | $1.54 | $1.54 |
| 875+ | $1.46 | $1.46 |
| 4,900+ | $1.41 | $1.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm (0.118").
It has 4 positions arranged in 2 rows.
Surface mount with solder termination.
250V.
-40°C to 105°C.
Black polyamide (PA) nylon with UL94 V-0 rating.
