| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
225 pcs
|
225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

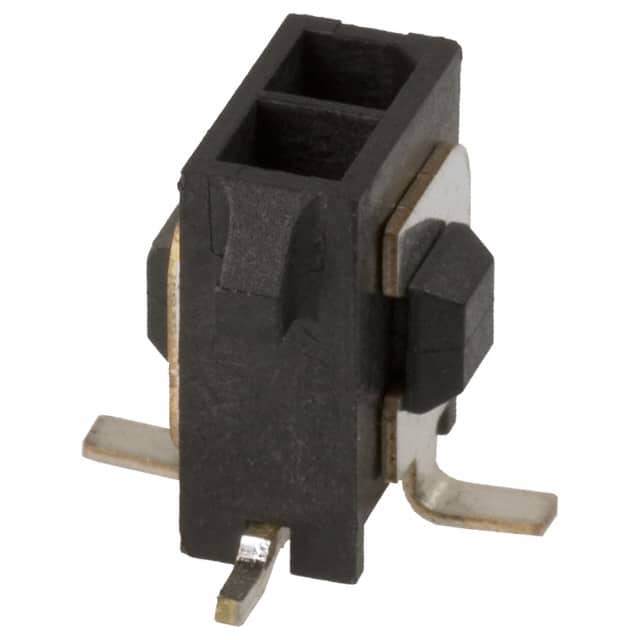

The TE Connectivity 3-794636-2 is a 2-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 3.00mm row spacing and a 9.25mm insulation height. The connector uses male square pins with a locking ramp fastening type for secure mating. The header is surface mount with solder termination and includes a solder retention feature to enhance board-level reliability. Contact material is brass with a tin finish (2.54µm plating thickness). The insulator is black polyamide (PA) nylon with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C. Voltage rating is 250V, and current rating varies by wire gauge.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.18 | $2.18 |
| 25+ | $2.16 | $2.16 |
| 100+ | $1.85 | $1.85 |
| 250+ | $1.66 | $1.66 |
| 500+ | $1.55 | $1.55 |
| 1,000+ | $1.42 | $1.42 |
| 2,500+ | $1.36 | $1.36 |
| 5,000+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 2 positions in 2 rows, with all positions loaded.
Surface mount with solder termination.
Voltage rating is 250V. Current rating varies by wire gauge.
-40°C to 105°C.
Polyamide (PA) nylon with UL94 V-0 rating.
Tin finish with 2.54µm thickness on brass contacts.
