| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,951 pcs
|
11951 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

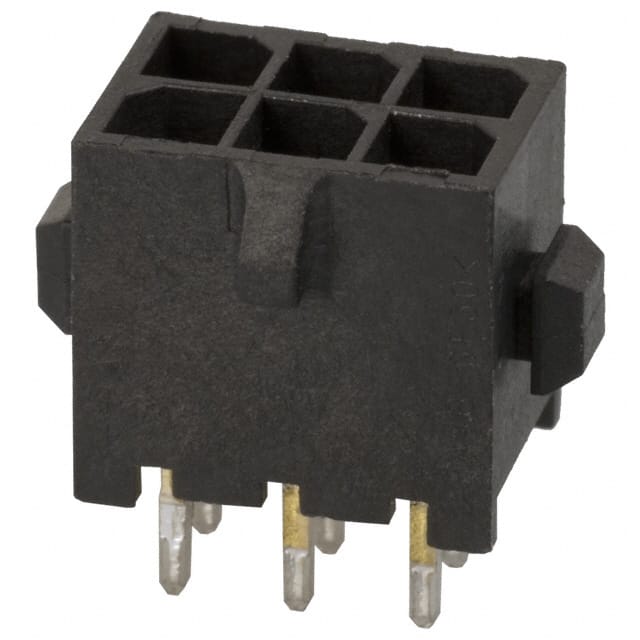

The TE Connectivity 3-794631-6 is a shrouded header connector designed for board-to-cable/wire applications. It has 6 positions arranged in 2 rows with a 3.00mm pitch and 3.00mm row spacing. The connector uses through hole mounting with press-fit and solder termination. The insulation is made of black polyamide (PA) nylon with a UL94 V-0 flammability rating, and the operating temperature range is -40°C to 105°C. Contacts are made of brass with a tin finish, and the contact length is 3.18mm. The insulation height is 9.25mm. The header is rated for 250V, and the current rating varies depending on the wire gauge used. The locking ramp fastening type ensures secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.39 | $2.39 |
| 10+ | $2.04 | $2.04 |
| 25+ | $2.01 | $2.01 |
| 100+ | $1.87 | $1.87 |
| 286+ | $1.60 | $1.60 |
| 572+ | $1.52 | $1.52 |
| 1,144+ | $1.27 | $1.27 |
| 5,148+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
3.00mm.
Yes, the current rating varies by wire gauge.
250V.
Through hole.
-40°C to 105°C.
Brass with tin finish.
