| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,106 pcs
|
2106 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

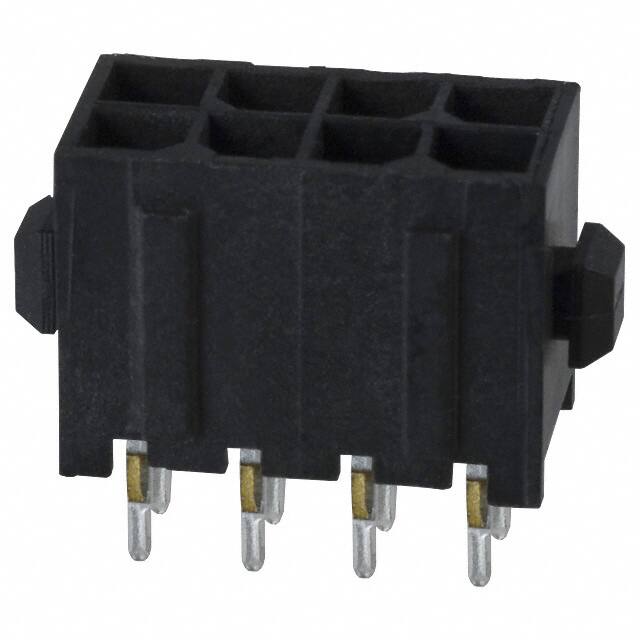

TE Connectivity 3-794630-8 is a rectangular connector header designed for board-to-cable/wire applications. It has 8 positions arranged in 2 rows with a 3.00mm pitch and 3.00mm row spacing. The connector is shrouded with a 4-wall design and includes a locking ramp for secure mating.
The through hole mounting supports both press-fit and solder termination. Contacts are male pins made of brass with a tin finish (2.54µm thickness). The insulation is black polyamide (PA) nylon, rated UL94 V-0. Operating temperature range is -40°C to 105°C, with a voltage rating of 250V. Current rating varies by wire gauge.
This header is suitable for use in industrial, automotive, and general purpose wire-to-board interconnections where a reliable, shrouded connection is required. The locking ramp helps prevent accidental disconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.75 | $1.75 |
| 10+ | $1.41 | $1.41 |
| 100+ | $1.02 | $1.02 |
| 234+ | $0.98 | $0.98 |
| 468+ | $0.96 | $0.96 |
| 5,148+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
3.00mm (0.118").
250V.
Through hole.
-40°C to 105°C.
Press-fit, solder.
Polyamide (PA), Nylon.
