| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
381 pcs
|
381 pcs | On Request | 1 | On Request | On Request | 1813+ | On Request | On Request | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Tape/Reel Status | |
| Termination | |
| Termination Style | |
| Voltage Rating |

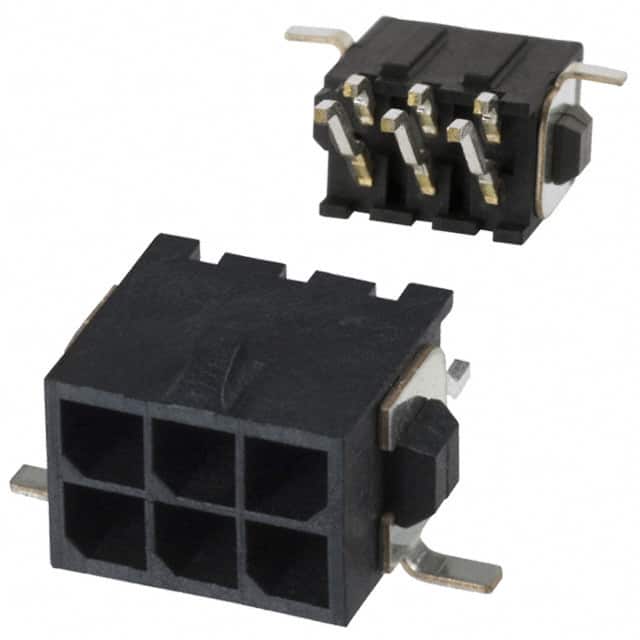

The TE Connectivity 3-794627-6 is a 6-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 3.00mm pitch and 0.118" row spacing, with a surface mount right angle mounting style for compact PCB layouts. The connector is fully loaded with all positions populated and includes a locking ramp fastening type for secure mating.
The header is constructed with a black polyamide (PA) nylon insulator rated UL94 V-0 for flammability resistance. Contacts are made of brass with a 100.0µin tin finish, providing reliable solderability and corrosion resistance. The insulation height is 7.37mm, and the part includes a solder retention feature to improve mechanical stability during assembly.
This connector is rated for 250V and has an operating temperature range of -40°C to 105°C. It is suitable for a variety of industrial and consumer applications requiring a robust, space-saving interconnect solution. The part is typically supplied in tape and reel packaging for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.37 | $3.37 |
| 10+ | $2.87 | $2.87 |
| 25+ | $2.82 | $2.82 |
| 100+ | $2.49 | $2.49 |
| 150+ | $2.33 | $2.33 |
| 450+ | $2.06 | $2.06 |
| 900+ | $1.90 | $1.90 |
| 2,400+ | $1.81 | $1.81 |
| 4,950+ | $1.78 | $1.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm (0.118").
It has 6 positions arranged in 2 rows.
The voltage rating is 250V.
The operating temperature range is -40°C to 105°C.
It uses surface mount right angle mounting.
Contacts are brass with a 100.0µin tin finish.
Yes, it is a shrouded - 4 wall header.
