| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

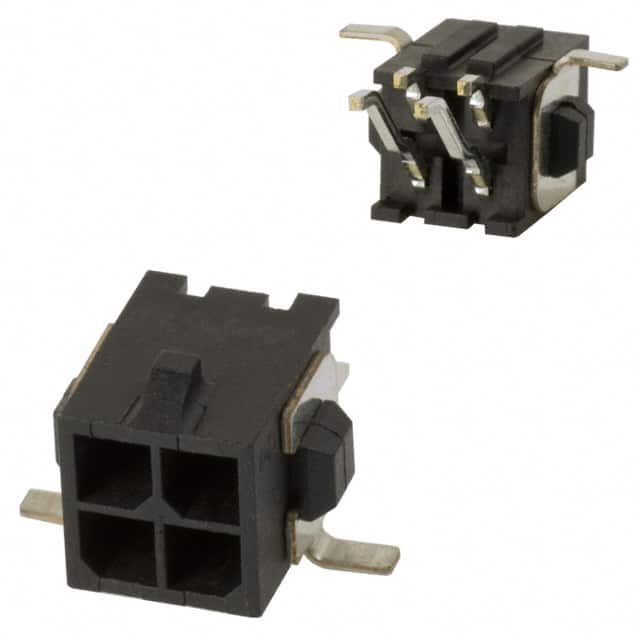

The TE Connectivity 3-794627-4 is a 4-position, 2-row header connector designed for board-to-cable/wire applications. It features a 3.00mm pitch and 3.00mm row spacing, with a shrouded 4-wall design that provides protection and alignment. The connector uses male pin contacts made of brass with a tin finish of 100µin (2.54µm) for reliable conductivity.
The mounting type is surface mount with a right-angle orientation, and termination is through solder. The insulation material is polyamide (nylon) in black, with an insulation height of 7.37mm. The fastening type is a locking ramp for secure mating, and the design includes solder retention features for improved mechanical stability during assembly.
Electrically, the connector is rated for 250V. The current rating varies by wire gauge, and the operating temperature range is -40°C to 105°C. The material flammability rating is UL94 V-0, indicating good flame resistance. This connector is suitable for various applications requiring a compact, reliable interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.73 | $2.73 |
| 10+ | $2.32 | $2.32 |
| 150+ | $1.91 | $1.91 |
| 300+ | $1.82 | $1.82 |
| 450+ | $1.77 | $1.77 |
| 750+ | $1.71 | $1.71 |
| 1,050+ | $1.67 | $1.67 |
| 1,500+ | $1.63 | $1.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
3.00mm (0.118").
250V.
Surface mount, right angle.
Varies by wire gauge.
-40°C to 105°C.
Tin, 100µin (2.54µm) thickness.
