| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,170 pcs
|
1170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

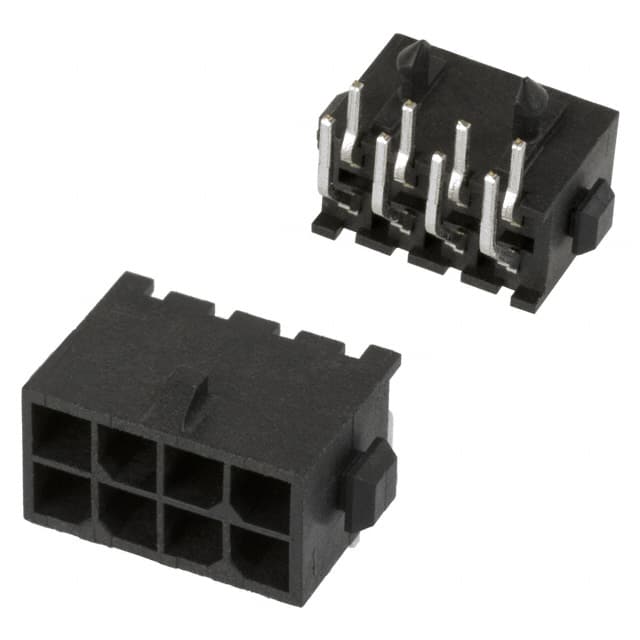

The TE Connectivity 3-794618-8 is a rectangular connector header designed for board-to-cable/wire applications. It features 8 positions arranged in 2 rows with a 3.00mm pitch and row spacing. The connector is shrouded with a 4-wall design and includes a locking ramp for secure mating. A board lock feature aids in retention during soldering. The header uses male pin contacts made of brass with a tin finish (100µin thickness) and square contact shape. The insulation is black polyamide (nylon) with UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C. Voltage rating is 250V. Current rating varies by wire gauge. The connector is RoHS3 compliant and REACH unaffected (unverified). It is suitable for various wire-to-board interconnection needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.45 | $2.45 |
| 10+ | $2.09 | $2.09 |
| 25+ | $1.93 | $1.93 |
| 100+ | $1.70 | $1.70 |
| 234+ | $1.61 | $1.61 |
| 468+ | $1.52 | $1.52 |
| 1,170+ | $1.47 | $1.47 |
| 2,574+ | $1.39 | $1.39 |
| 5,148+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
3.00mm (0.118").
250V.
Through hole, right angle.
Varies by wire gauge.
Yes, locking ramp.
-40°C to 105°C.
