| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,262 pcs
|
2262 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

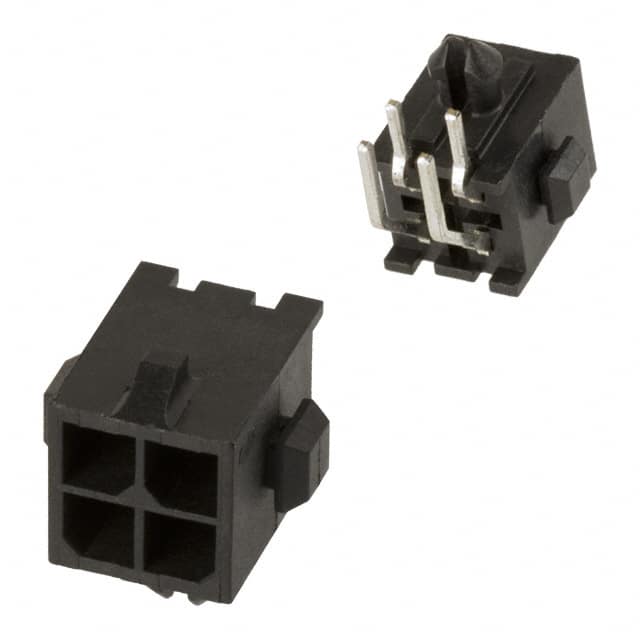

The TE Connectivity 3-794618-4 is a 4 position, 2 row, 3.00mm pitch right angle shrouded header designed for board to cable/wire applications. It features a through hole, right angle mounting style with solder termination and a locking ramp fastening type for secure mating.
The header has a black polyamide (nylon) insulator with a UL94 V-0 flammability rating and an operating temperature range of -40°C to 105°C. Contacts are made of brass with a tin finish (100.0µin / 2.54µm) and are square in shape. The shrouded 4-wall design provides protection and alignment for the mating connector.
This component includes a board lock feature for secure attachment to the PCB. It is rated for 250V and its current rating varies by wire gauge. The part is RoHS3 compliant and has an MSL of Level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.66 | $1.66 |
| 10+ | $1.37 | $1.37 |
| 25+ | $1.29 | $1.29 |
| 100+ | $1.26 | $1.26 |
| 250+ | $0.97 | $0.97 |
| 377+ | $0.92 | $0.92 |
| 1,131+ | $0.86 | $0.86 |
| 2,639+ | $0.85 | $0.85 |
| 5,278+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 3-794618-4 has 4 positions in 2 rows.
The pitch is 3.00mm (0.118") with a row spacing of 3.00mm.
The voltage rating is 250V.
It is a through hole, right angle mounting type with solder termination.
The operating temperature range is -40°C to 105°C.
Contacts are made of brass with a tin finish of 100.0µin (2.54µm).
The part is listed as RoHS3 Compliant, but this status is unverified.
