| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,655 pcs
|
18655 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

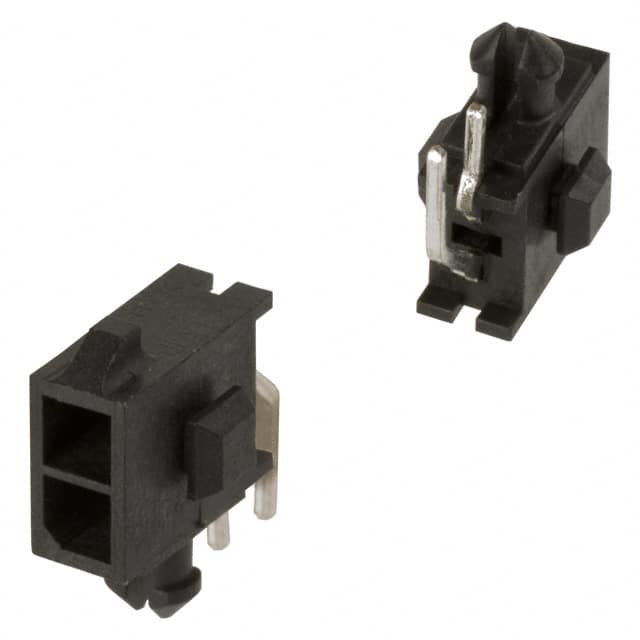

The TE Connectivity 3-794618-2 is a 2-position, right-angle, shrouded header designed for board-to-cable/wire applications. It features male square pins with tin contact finish (100.0µin) on brass contacts, ensuring reliable conductivity. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating and a board lock for enhanced PCB retention.
This connector is rated for 250V and has an operating temperature range of -40°C to 105°C, making it suitable for a variety of environments. The insulation is made of black polyamide (PA) nylon with a UL94 V-0 flammability rating. The header has a row spacing of 0.118" (3.00mm) and an insulation height of 7.37mm.
Mounting is through-hole, right-angle with solder termination, ideal for space-constrained designs where a low-profile connection is needed. The 2-position, 2-row configuration with all positions loaded provides a compact interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.99 | $0.99 |
| 100+ | $0.89 | $0.89 |
| 250+ | $0.78 | $0.78 |
| 1,066+ | $0.71 | $0.71 |
| 2,665+ | $0.67 | $0.67 |
| 5,330+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions, all loaded.
250V.
Through Hole, Right Angle.
Varies by wire gauge.
-40°C to 105°C.
Tin, 100.0µin (2.54µm).
Polyamide (PA), Nylon, black, UL94 V-0.
