| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
219 pcs
|
219 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

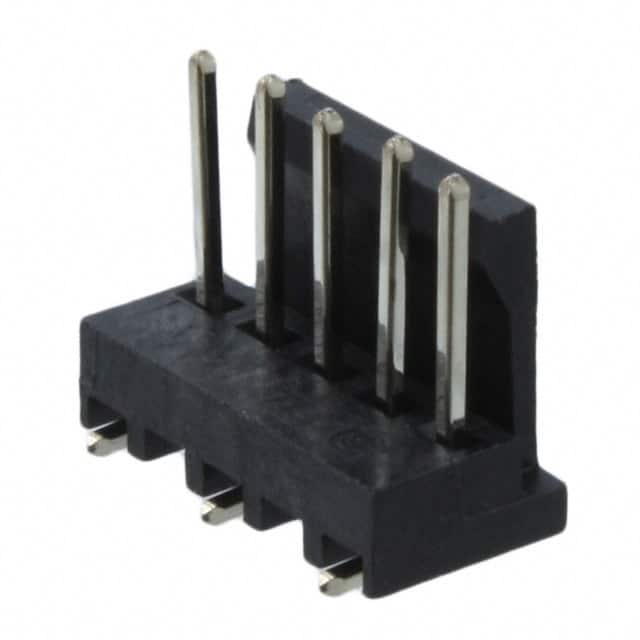

The TE Connectivity 3-647166-5 is a 5-position, single-row, shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and surface mount solder termination. The contacts are square, made of copper alloy with tin-lead (93/7) plating, and have a length of 7.37mm. The insulation is black polyamide (PA46) nylon 4/6 with a height of 8.81mm, rated UL94 V-0. The header includes a friction lock for secure mating and a 1-wall shroud. Electrical ratings include 250VAC and an operating temperature range of -55°C to 105°C. The overall length is 12.70mm. The post withstand force is 13N minimum. Solderability complies with TE specification 109-11-2. Note: This part is non-RoHS due to tin-lead plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.91 | $2.91 |
| 10+ | $2.48 | $2.48 |
| 100+ | $2.10 | $2.10 |
| 500+ | $1.88 | $1.88 |
| 1,000+ | $1.79 | $1.79 |
| 5,000+ | $1.60 | $1.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.54mm (0.100").
250VAC.
Surface mount.
-55°C to 105°C.
Tin-lead (93/7) plating per datasheet.
No, the datasheet indicates tin-lead plating, making it non-RoHS.
