| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

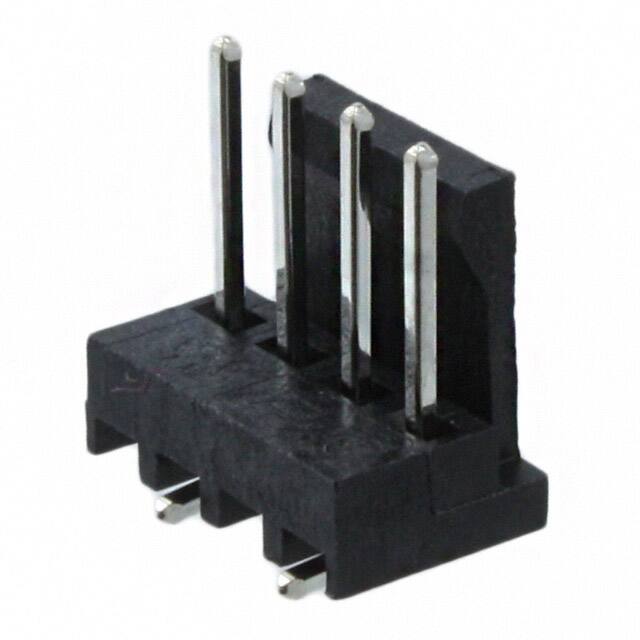

The TE Connectivity 3-647166-4 is a 4-position, single-row male pin header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and surface mount termination with solder contacts. The connector is shrouded with a single wall and includes a friction lock for secure mating. The insulation is made of black polyamide (PA46) Nylon 4/6, rated UL94 V-0 for flammability. The contacts are square-pin, tin-plated copper alloy with a length of 7.37mm. The operating temperature range is -55°C to 105°C. Voltage rating is 250VAC, and current rating varies by wire gauge. This connector is suitable for applications requiring reliable connections in confined spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.13 | $2.13 |
| 25+ | $2.02 | $2.02 |
| 100+ | $1.68 | $1.68 |
| 250+ | $1.61 | $1.61 |
| 500+ | $1.46 | $1.46 |
| 1,000+ | $1.37 | $1.37 |
| 2,500+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm.
Varies by wire gauge.
250VAC.
Surface mount.
Tin.
-55°C to 105°C.
