| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,375 pcs
|
1375 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Circuit Application | |
| Color | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Height | |
| Housing Color | |
| Housing Material | |
| Lead Spacing | |
| Length | |
| Mating Retention Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Operating Voltage | |
| Pitch | |
| Sealable | |
| Shielded | |
| Tape & Reel | |
| Termination Method | |
| Width | |
| Wire Gauge | |
| Wire Type |

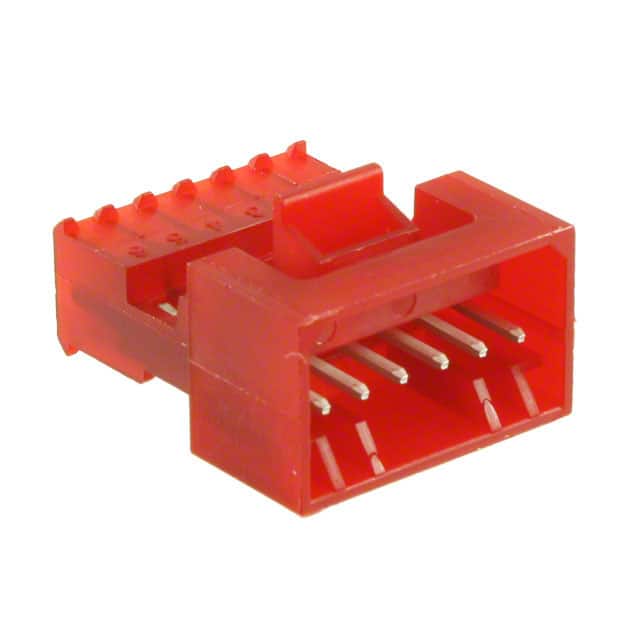

The TE Connectivity 3-647000-6 is a standard rectangular connector plug from the MTA 100 series. It features 6 positions in a single row with a 2.54 mm pitch, designed for wire-to-wire connections. The housing is made of red Nylon 6/6 and is free-hanging (cable mount) with a right-angle orientation. Termination is via Insulation Displacement Connection (IDC) for 22 AWG stranded wire.
Electrical ratings include an operating voltage of 250 VAC and a maximum contact current of 5 A. The contacts are male pins (tabs) with a tin plating over nickel underplating, providing reliable conductivity. The connector includes a latch for mating retention and polarization alignment for correct mating orientation.
This plug is suitable for signal circuit applications and is not sealed or shielded. It operates over a temperature range of -55 to 105 °C. The closed-end design prevents wire stubbing.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.51 | $1.51 |
| 10+ | $1.35 | $1.35 |
| 25+ | $1.27 | $1.27 |
| 100+ | $1.19 | $1.19 |
| 250+ | $1.13 | $1.13 |
| 500+ | $1.06 | $1.06 |
| 1,000+ | $0.97 | $0.97 |
| 2,500+ | $0.93 | $0.93 |
| 5,000+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in a single row.
2.54 mm (0.100 inch).
5 A maximum.
250 VAC.
Free hanging (in-line) with right-angle orientation.
22 AWG stranded wire.
-55 to 105 °C.
